Dirt Water Pump

GE-DP 8235 N-A LL ECO

Item no: 4171467 EAN: 4006825684377
  • 2-in-1 combination pump for clean and waste water
  • Clean water: flat suction to 1 mm residual water level
  • Dirty water: handles particles up to 35 mm in size
  • Adjustable suction level via simple twist mechanism
  • Aquasensor technology with different trigger heights
  • Pump operation possible from 15 mm water height
  • Rugged stainless-steel housing
  • Carrying handle for easy transport

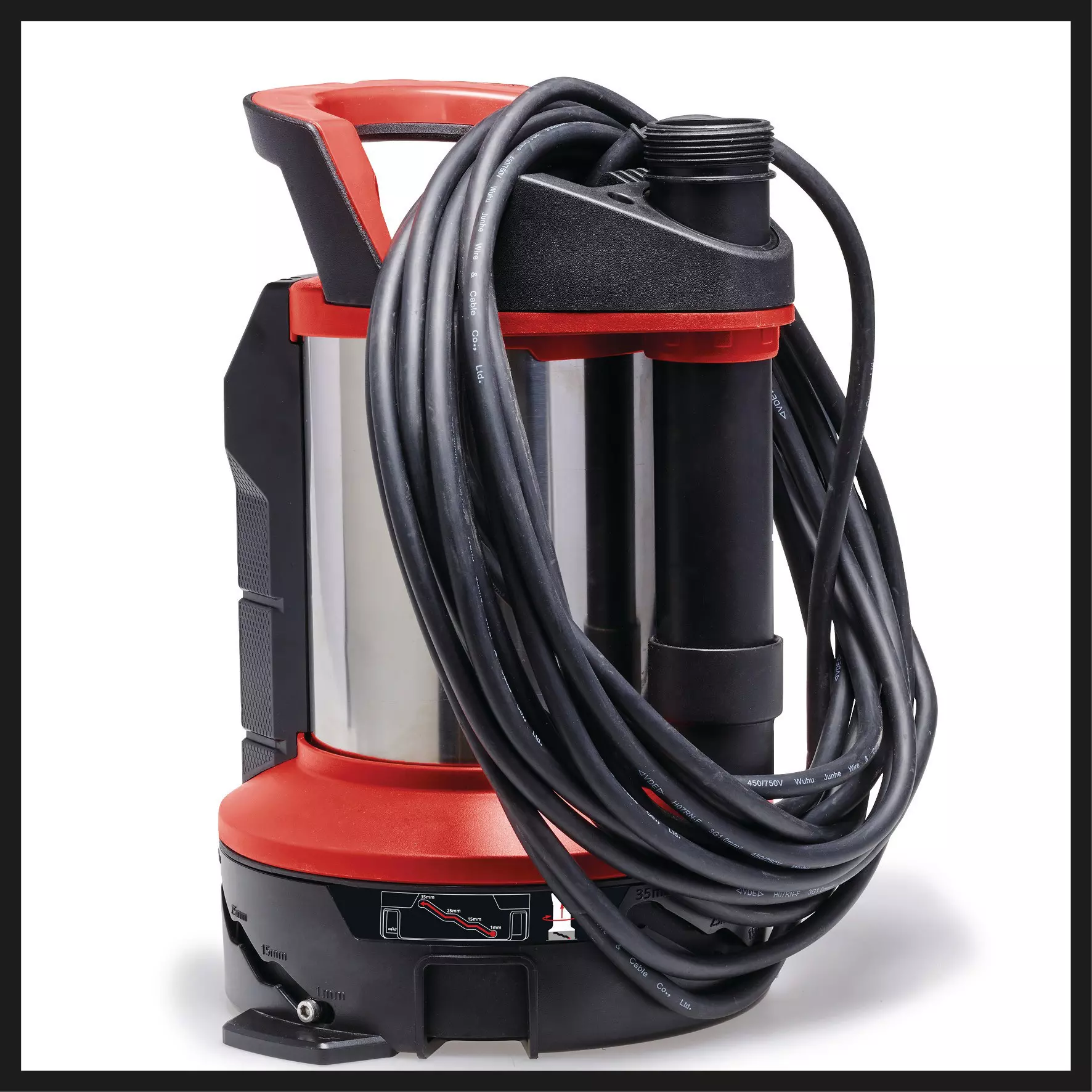

  • Cable winder for neat storage
  • Hanging eyelet for draining the pump
  • Easy-access hose connection on top of the pump
  • Universal adapter for 25/38 mm hoses and 33.3 mm (G 1") thread
  • Incl. Quick-Connector for fast exchange of hose
  • High-quality mechanical seal for long service life
  • Protection against dry-running to prevent damage
See more information
Show less information
Total 155.95155.95 EUR*
Configure your set
Starter Kit
PXC-Starter-Kitincl. 4,0Ah Battery + Charger Item no: 4512042
RRP 69.950.00
PXC-Starter-Kitincl. 4,0Ah Plus Battery + Charger Item no: 4512159
RRP 90.950.00
PXC-Starter-Kitincl. 5,2Ah Battery + Charger Item no: 4512147
RRP 105.950.00
PXC-Starter-Kitincl. 4-6Ah Battery + Boostcharger Item no: 4512143
RRP 145.950.00
Storage
System caseincl. E-Case M Item no: 4540021
RRP 59.950.00
System caseincl. E-Case L Item no: 4540014
RRP 92.950.00
Attention!

Currently, no orders can be placed in the online shop.

Please try again later or check your firewall/ad-blocker settings.

Dirt Water Pump
GE-DP 8235 N-A LL ECO
Item no: 4171467 EAN: 4006825684377
  • 2-in-1 combination pump for clean and waste water
  • Clean water: flat suction to 1 mm residual water level
  • Dirty water: handles particles up to 35 mm in size
  • Adjustable suction level via simple twist mechanism
  • Aquasensor technology with different trigger heights
  • Pump operation possible from 15 mm water height
  • Rugged stainless-steel housing
  • Carrying handle for easy transport
  • Cable winder for neat storage
  • Hanging eyelet for draining the pump
  • Easy-access hose connection on top of the pump
  • Universal adapter for 25/38 mm hoses and 33.3 mm (G 1") thread
  • Incl. Quick-Connector for fast exchange of hose
  • High-quality mechanical seal for long service life
  • Protection against dry-running to prevent damage
See more information
Show less information

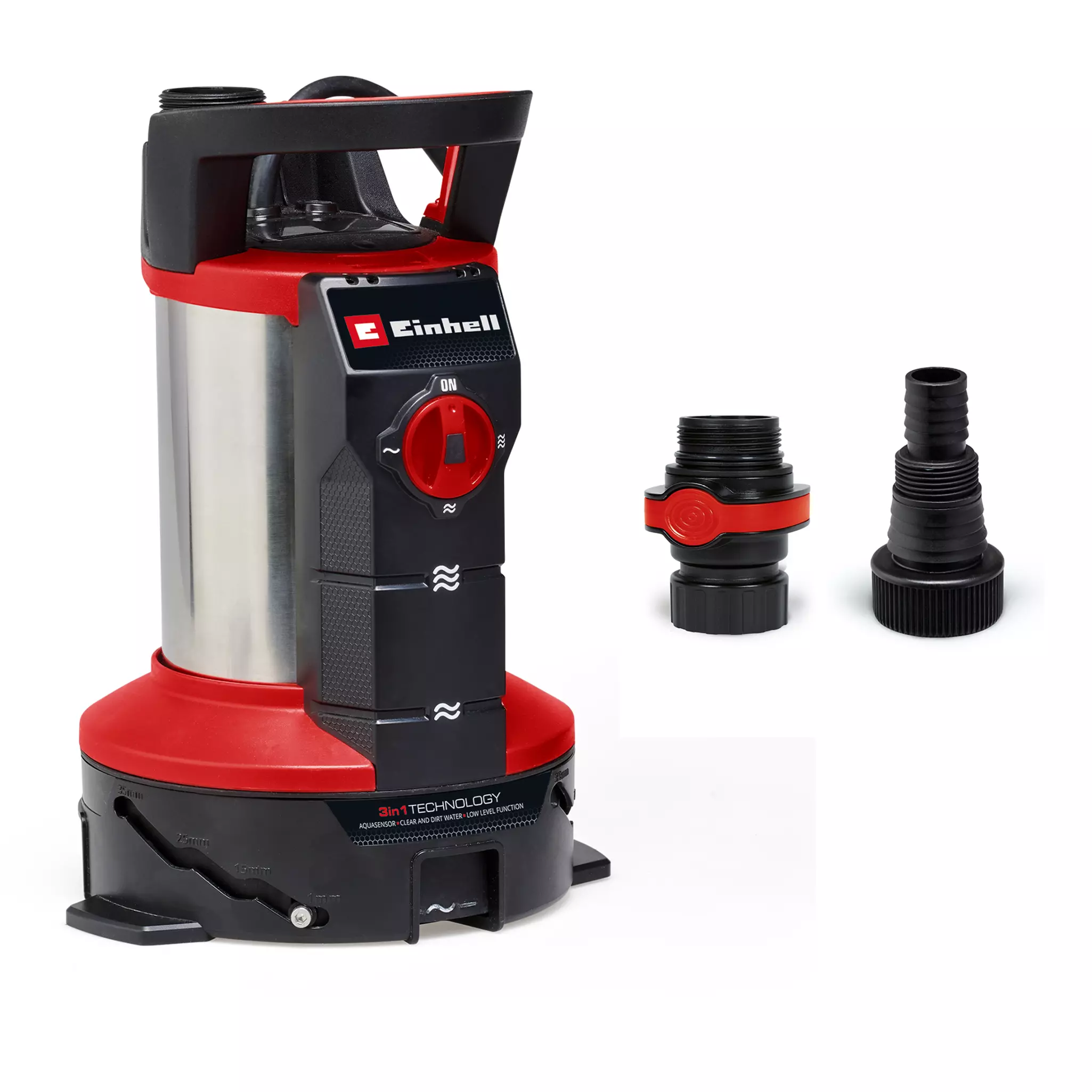

einhell-expert-dirt-water-pump-4171467-productimage-001
Article description

The Einhell dirty water pump GE-DP 8235 N-A LL 3‑in‑1 is a true all‑rounder and ideal for versatile applications. Whether pumping out ponds, construction pits or flooded basements, this combination pump handles both clean and dirty water with particle sizes up to 35 mm with ease. The combined dirty water pump impresses with a high output of 820 watts and delivers up to 19,000 litres of water per hour. It can pump water to a maximum delivery head of 9 m. The Aquasensor allows quick and easy adjustment of the pump start, distinguishing between dirty water and clean water mode. Dry‑run protection prevents damage to the unit by ensuring the motor only operates when the submersible pump is in the water. Pumping can start from a water level of just 15 mm. The suction level adjustment is operated by a simple twisting motion and can be easily set in 4 stages. Depending on requirements, the pump flat‑suctions down to a residual water level of 1 mm in clean water mode or handles dirty water with coarse particles. Practical suspension eyes allow the pump to be lowered safely and in a controlled manner using a rope. The robust stainless‑steel pump housing and the high‑quality mechanical seal reliably withstand even demanding drainage tasks and ensure a long service life. Thanks to the practical, ergonomic carrying handle, this 2‑in‑1 pump is quick and easy to use anywhere, while the cable winder ensures tidy storage. The scope of delivery includes a quick‑connector for fast hose changes and a universal adapter for 25/38 mm hoses and 33.3 mm (G 1") male thread.

See more information
Show less information

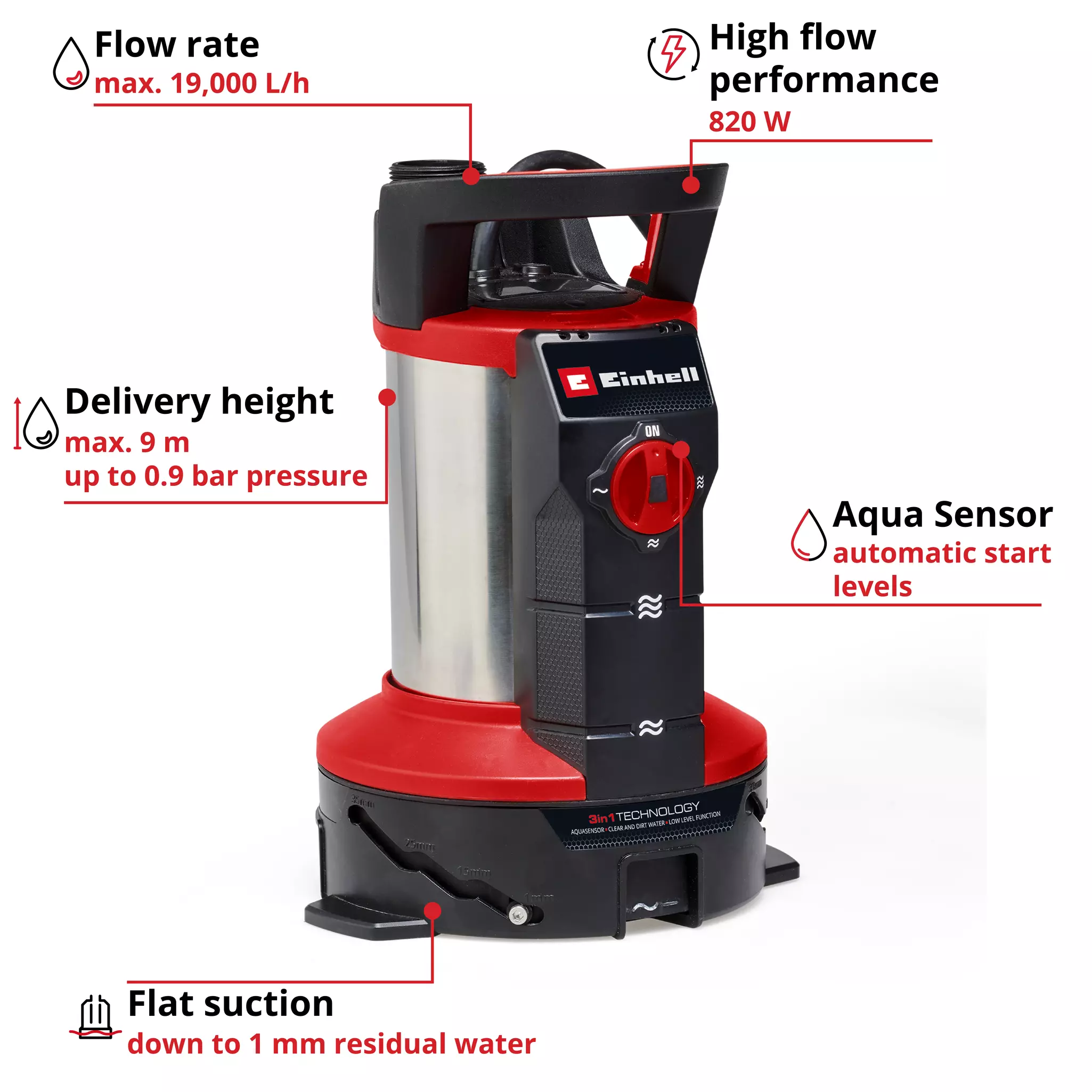

Technical details

Aquasensor starting height 1
20 mm
Aquasensor starting height 2
30 mm
Aquasensor starting height 3
100 mm
Max. delivery height
9 m
Max. delivery pressure
0.9 bar
Max. delivery rate
19000 l/h
Max. foreign body size
35 mm
Max. immersion depth
7 m
Max. water temperature
35 °C
Min. water level pump start
15 mm
Power
820 W
Power cable length
10 m
Pressure connection type
47,8 mm (G11/2 AG)
Shallow suction up to
1 mm

Flat Suction

Adjust suction level with a simple twist

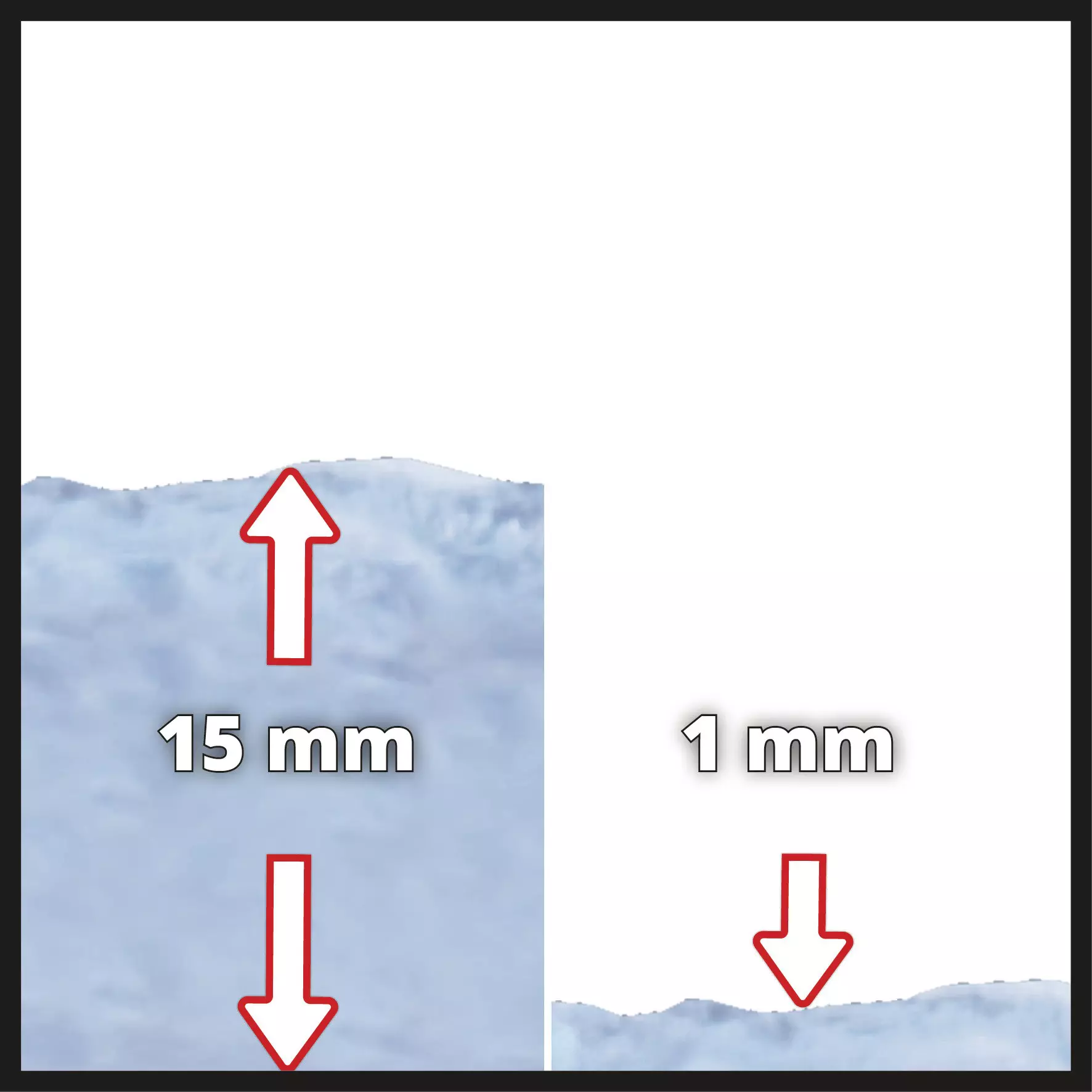

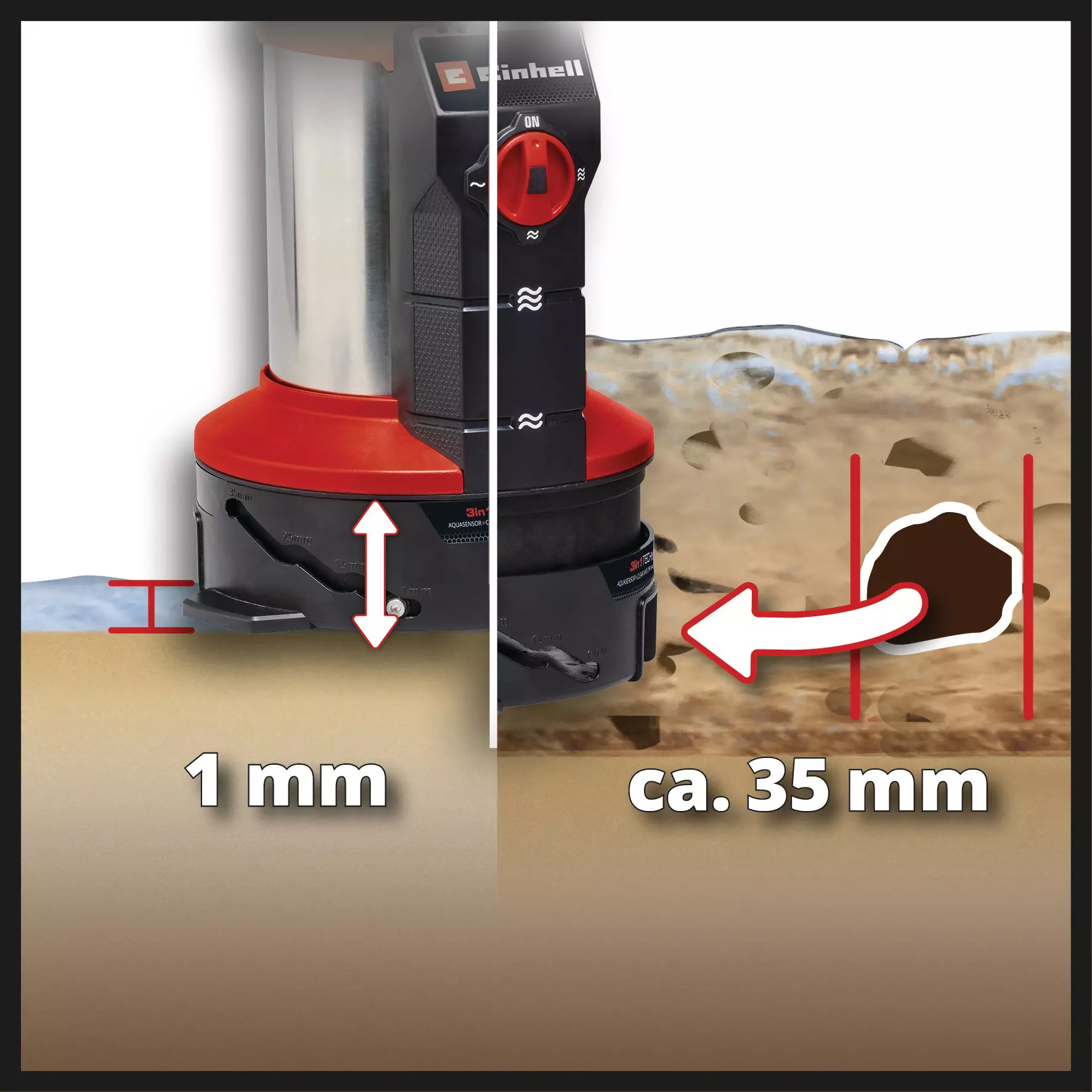

The Einhell dirty water pump GE-DP 8235 N-A LL can drain clear water down to a residual level of 1 mm. In this setting, it handles particles up to Ø 1 mm. The suction level and particle size capacity can be easily adjusted by simply twisting the pump, making it suitable for dirty water as well. Four levels are available: 1 mm, 15 mm, 25 mm, or 35 mm.

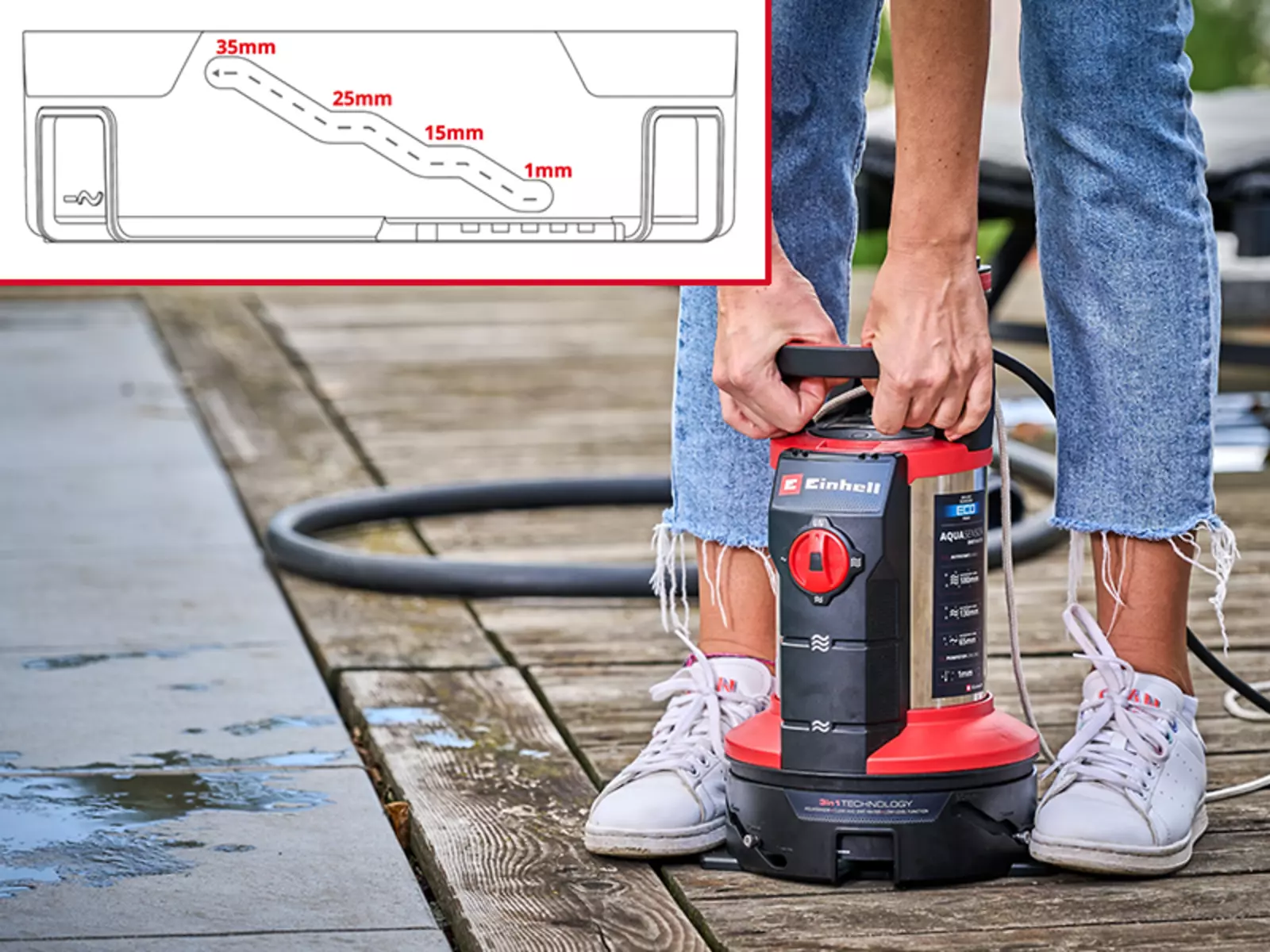

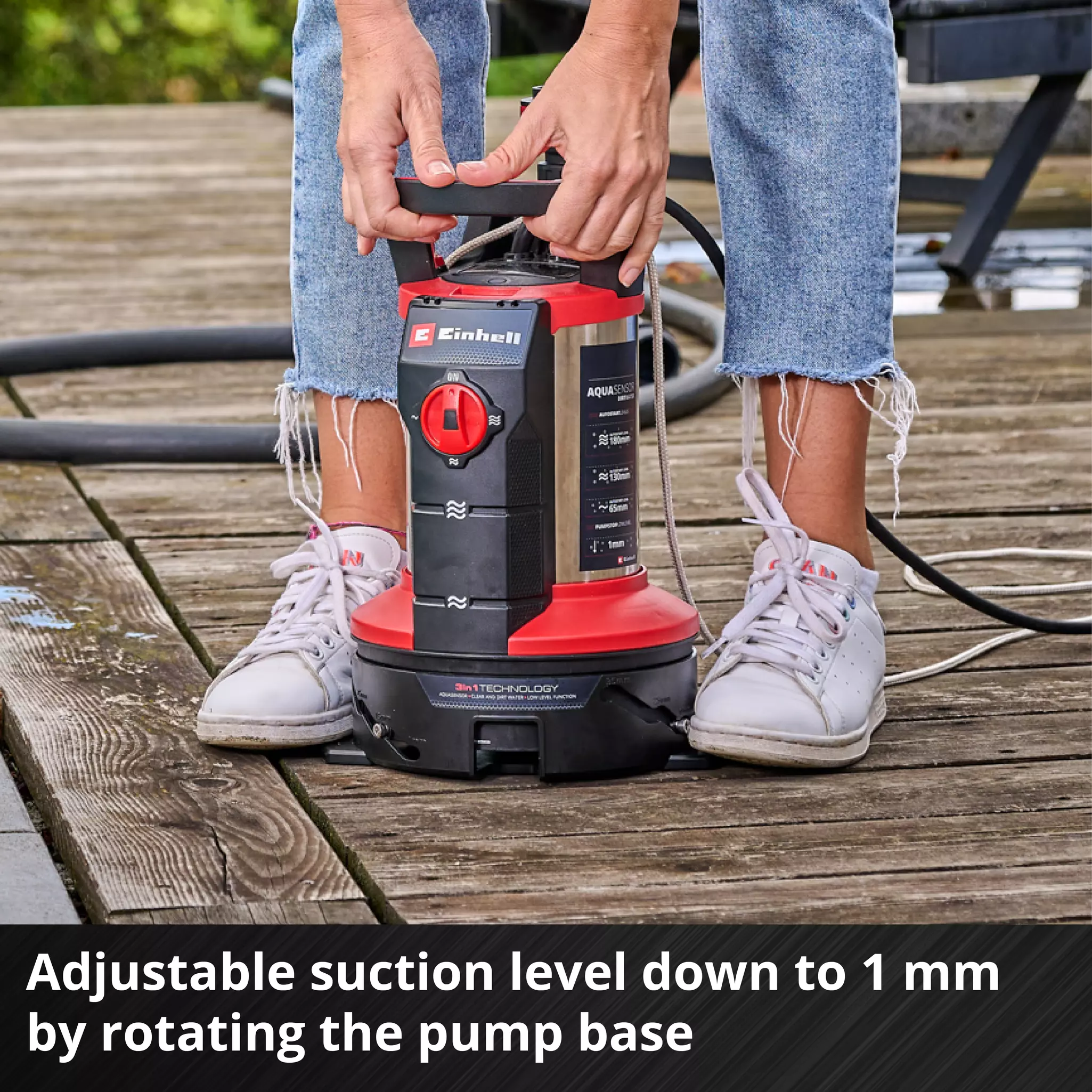

The Einhell Dirty Water Pump GE-DP 8235 N-A LL is positioned on a wooden deck; the image includes a diagram showing suction levels from 35 mm to 1 mm.

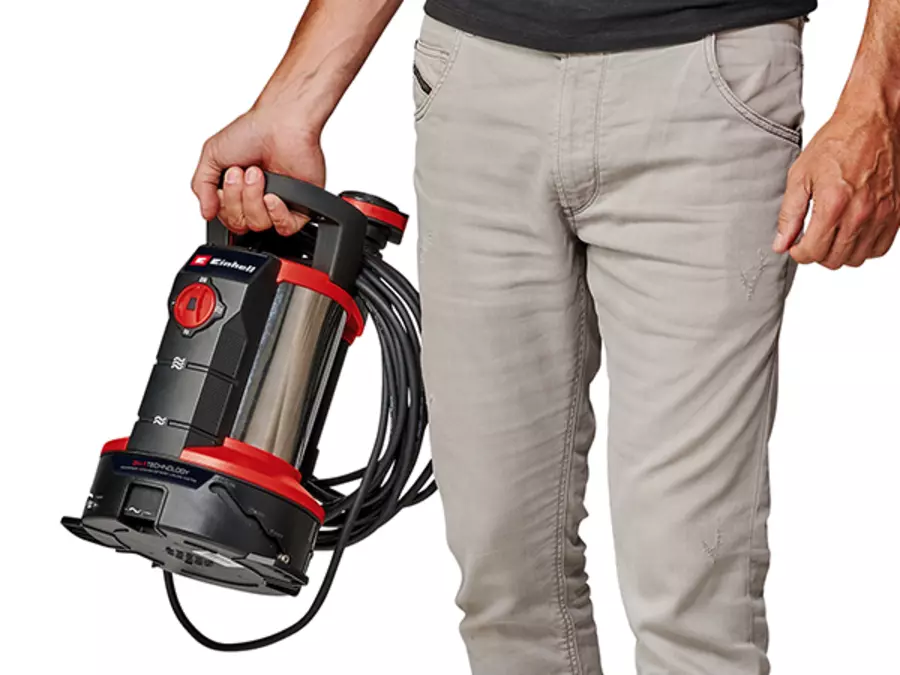

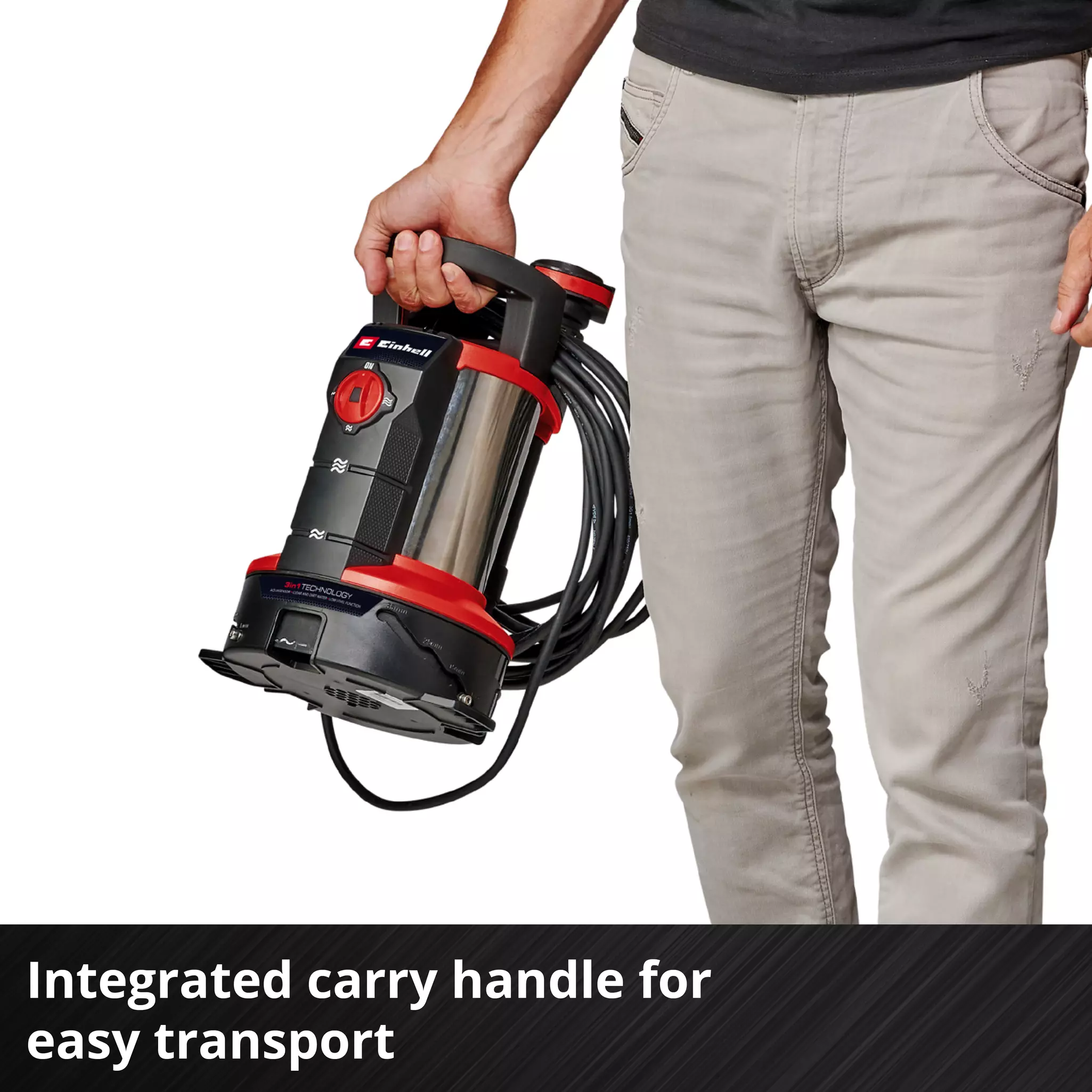

The Einhell Dirty Water Pump GE-DP 8235 N-A LL is carried by its handle.

Easy Transport

The integrated carry handle makes the Einhell dirty water pump easy to transport.

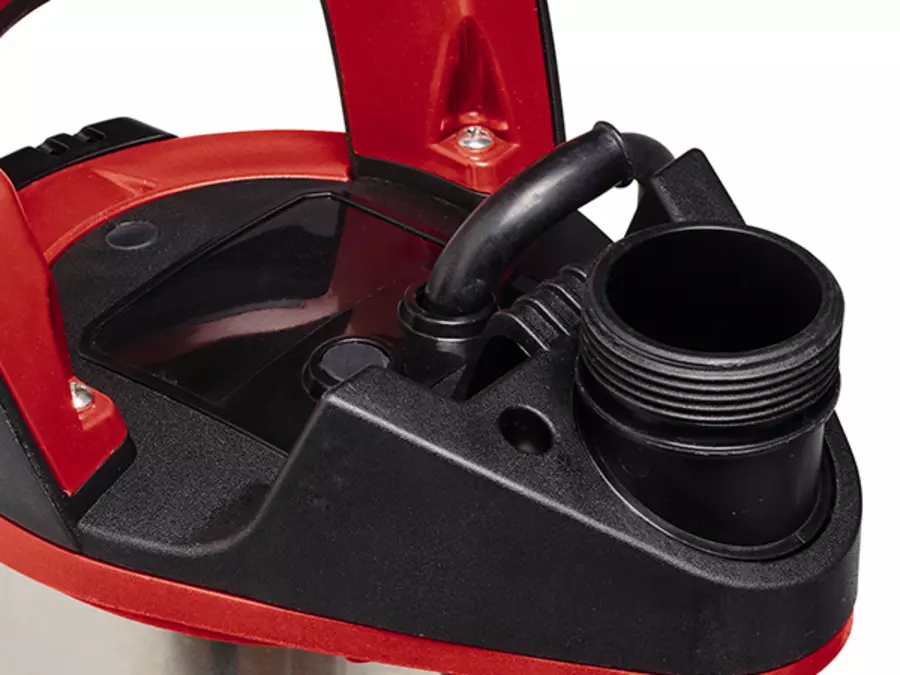

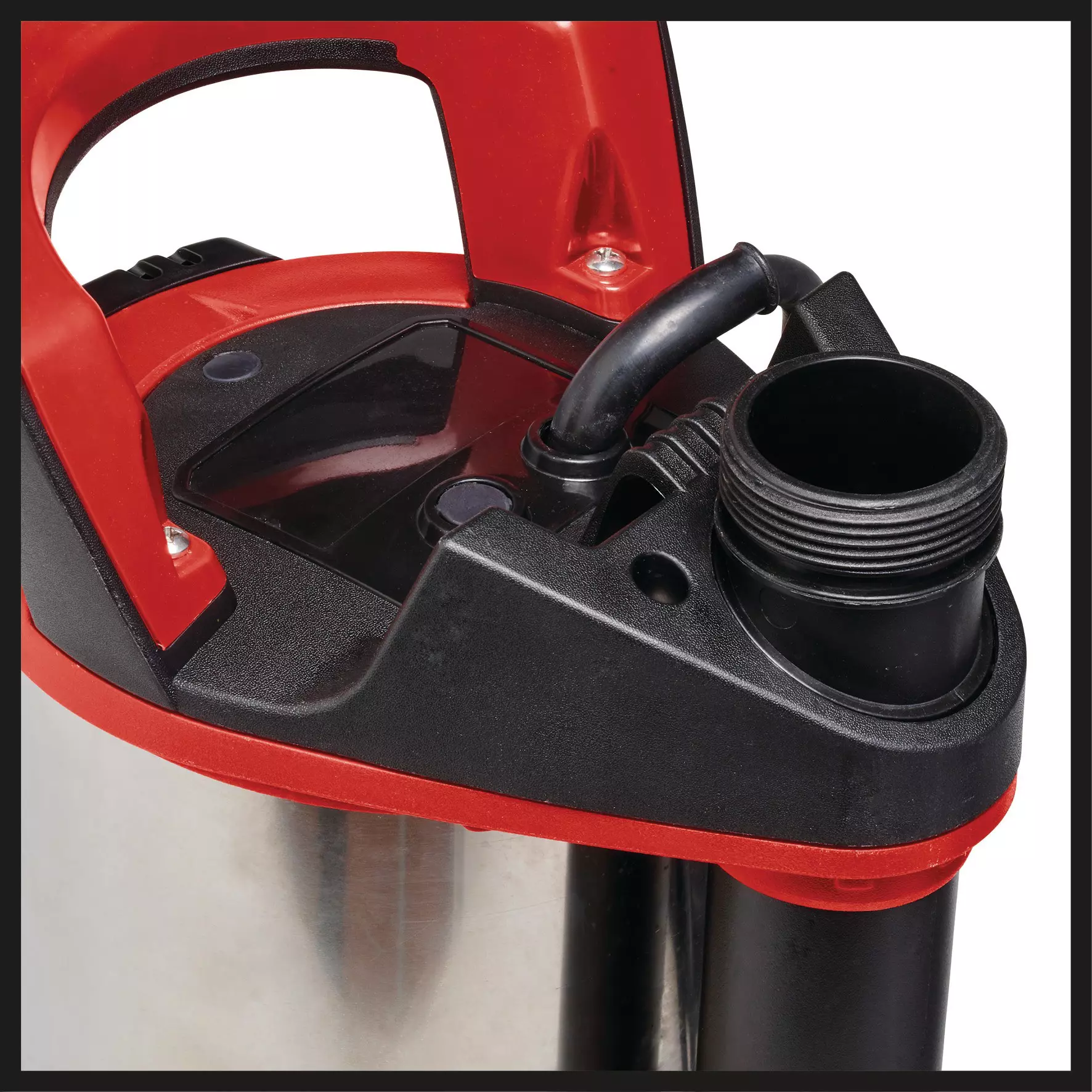

Close-up of the suspension eyelet at the top of the pump.

Controlled Lowering

A rope can be attached to the hanging loop for simple and controlled lowering into the water.

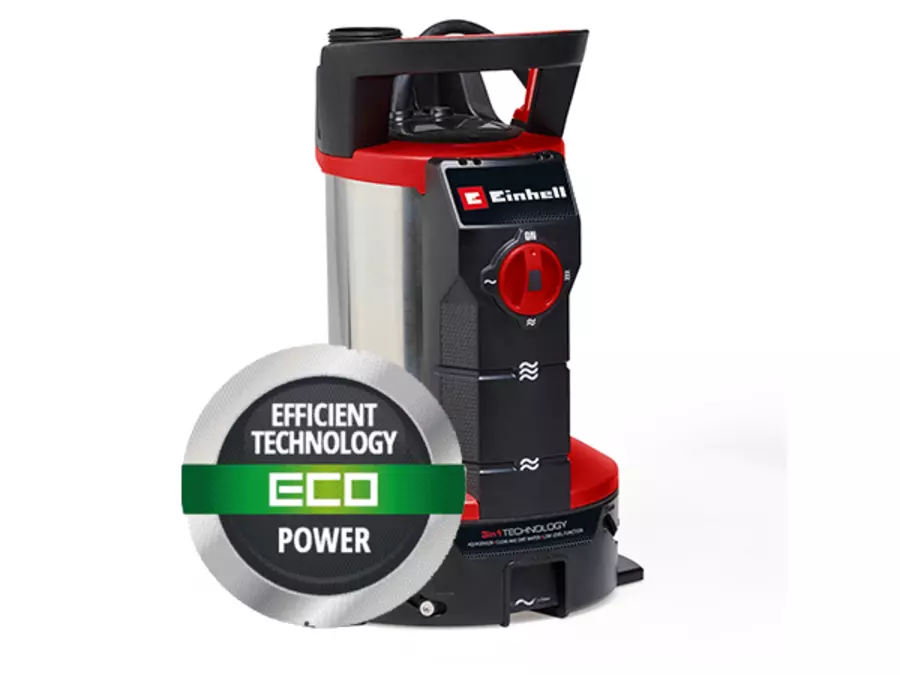

The Einhell Dirty Water Pump GE-DP 8235 N-A LL with ECO Power symbol for energy efficiency.

ECO-Power

ECO-Power ensures that the dirty water pump delivers high performance despite lower energy consumption.

Detail view of the stainless steel housing of the Einhell Dirty Water Pump GE-DP 8235 N-A LL.

Robust Housing

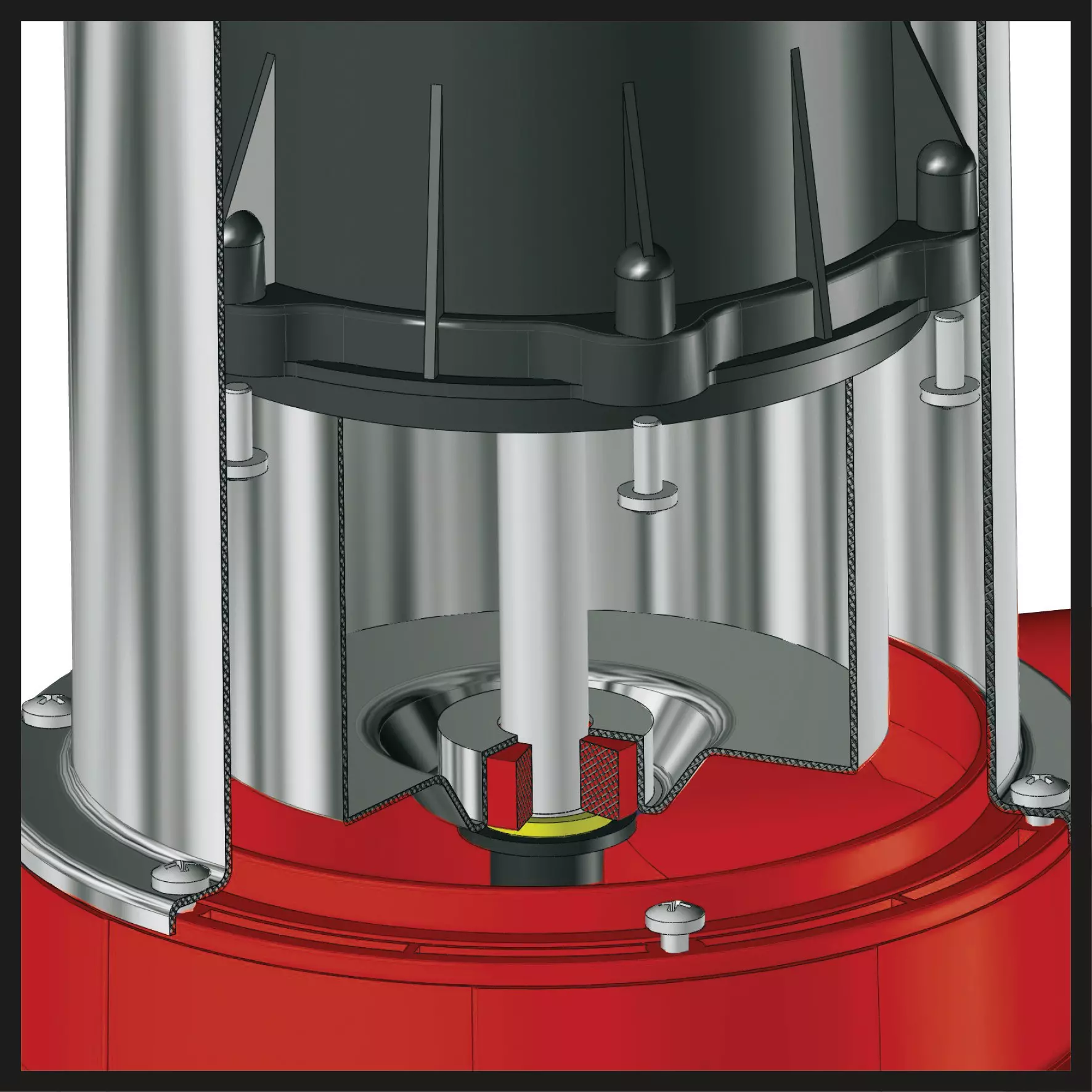

The durable stainless steel housing and high-quality mechanical seal ensure a long lifespan for the 3-in-1 pump.

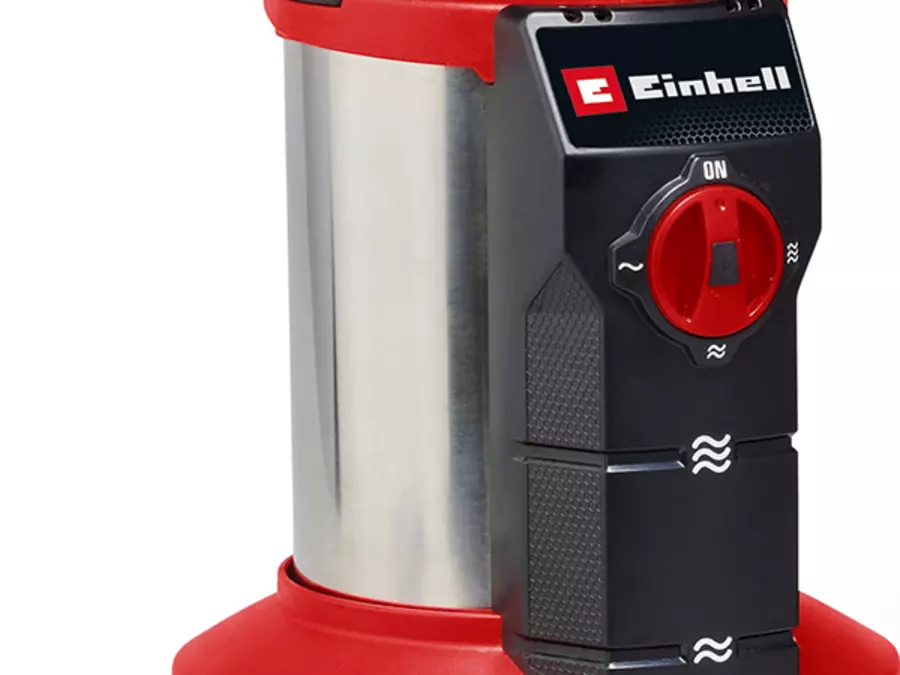

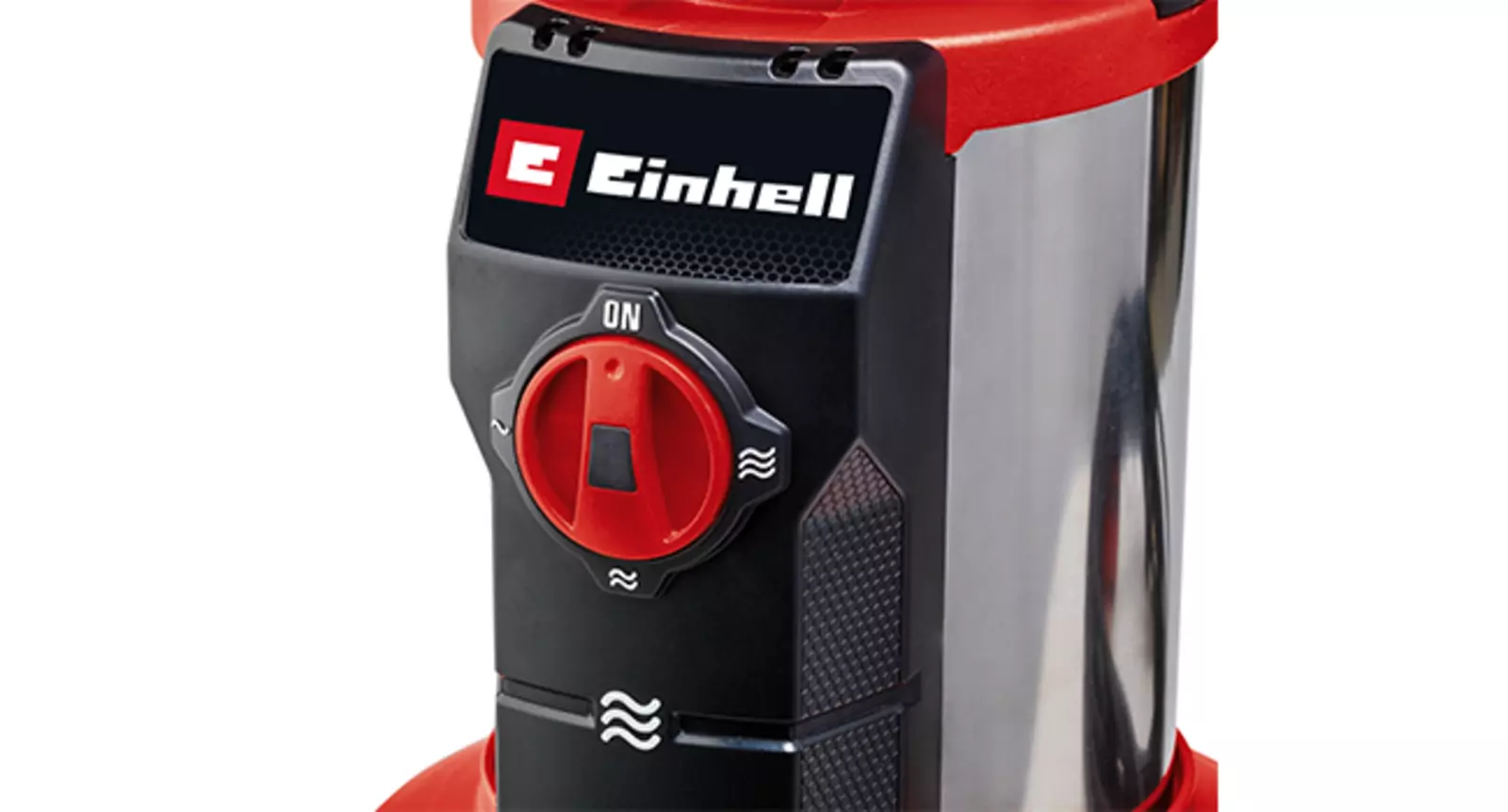

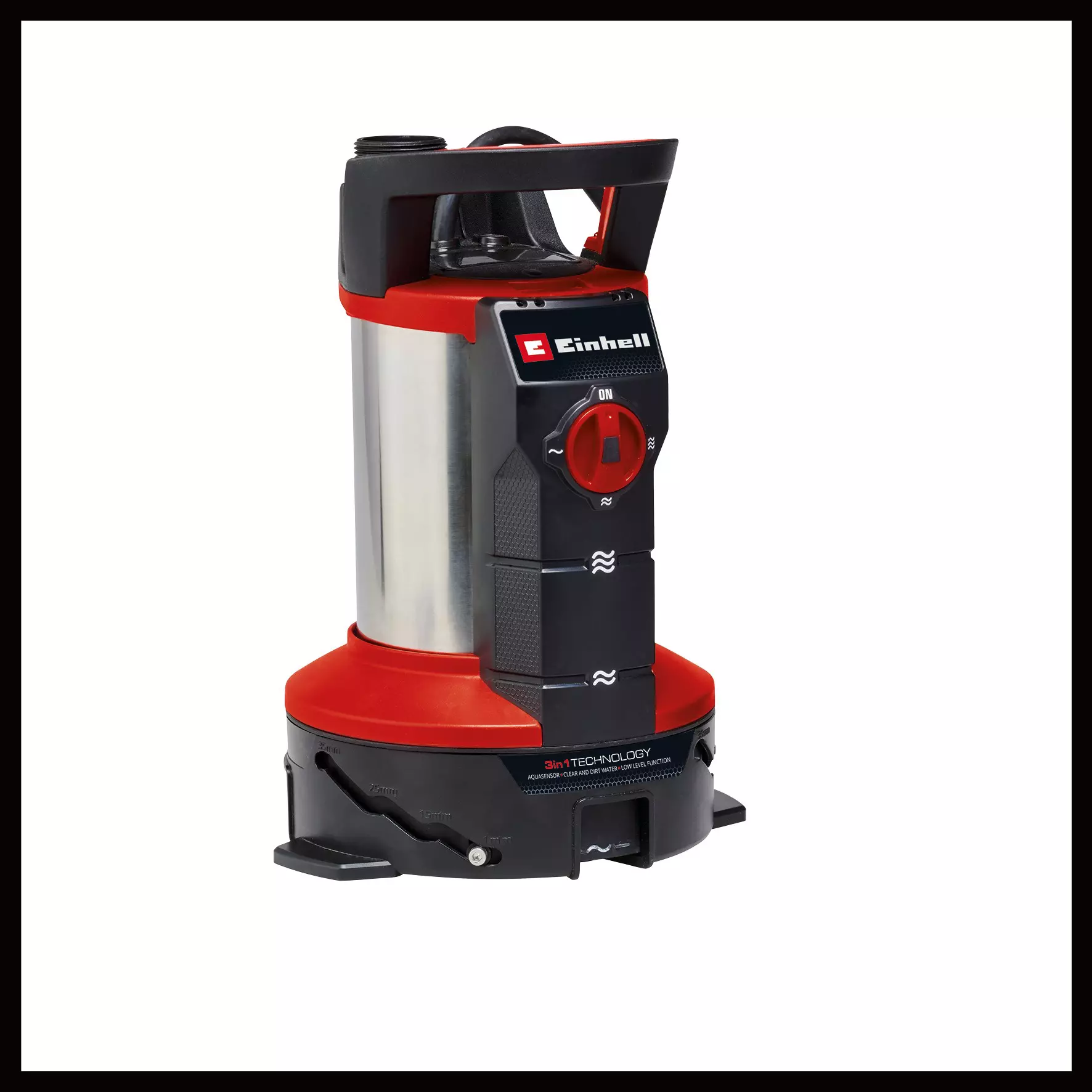

Front view of the Einhell dirty water pump GE-DP 8235 N-A LL with a red rotary switch.

Aqua Sensor

The Aqua Sensor allows quick and easy adjustment of the pump start. It differentiates between dirty and clear water modes. In dirty water mode, it handles levels from 15 – 35 mm, while in clear water mode, it suctions down to a residual level of 1 mm.

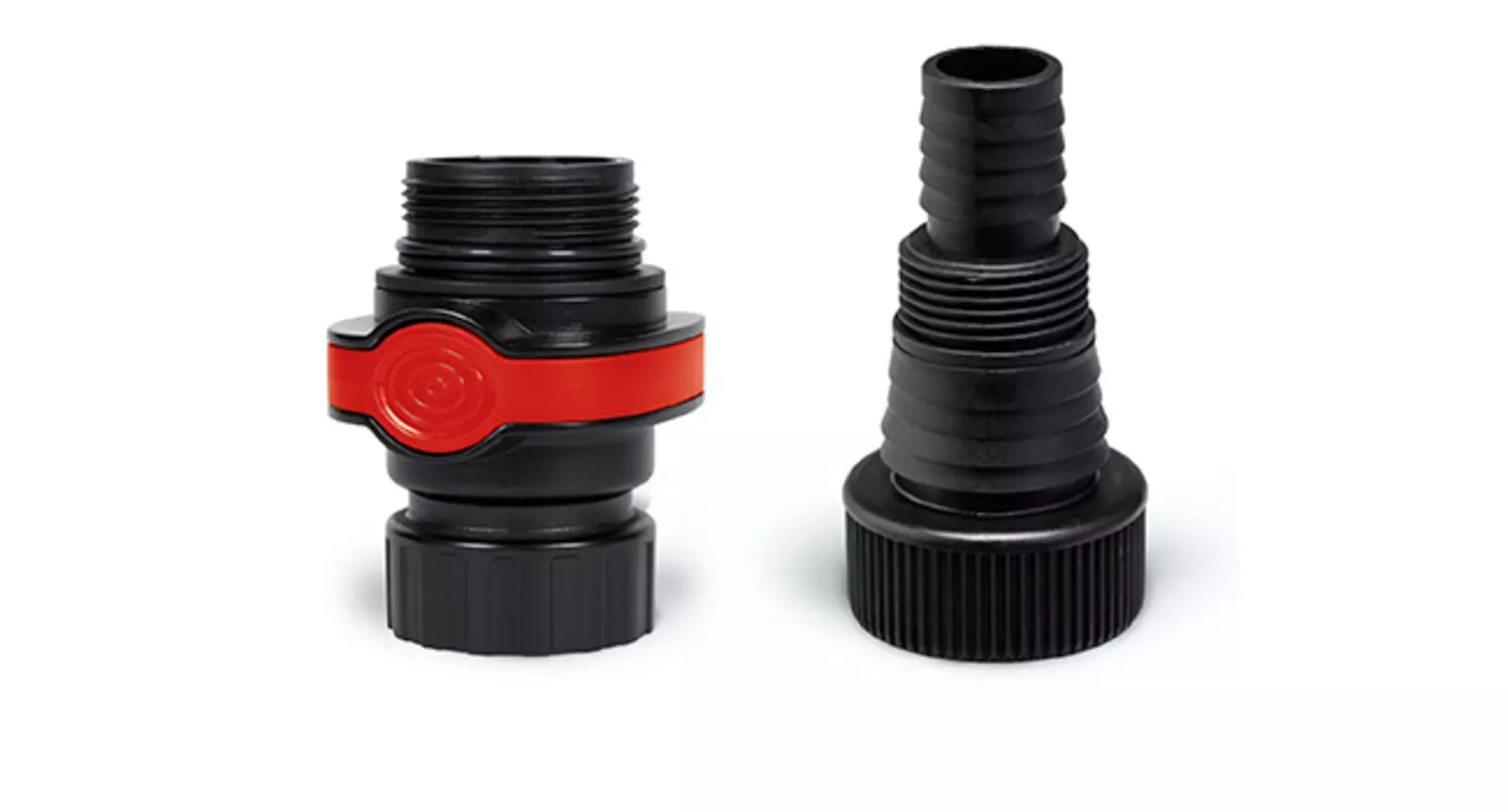

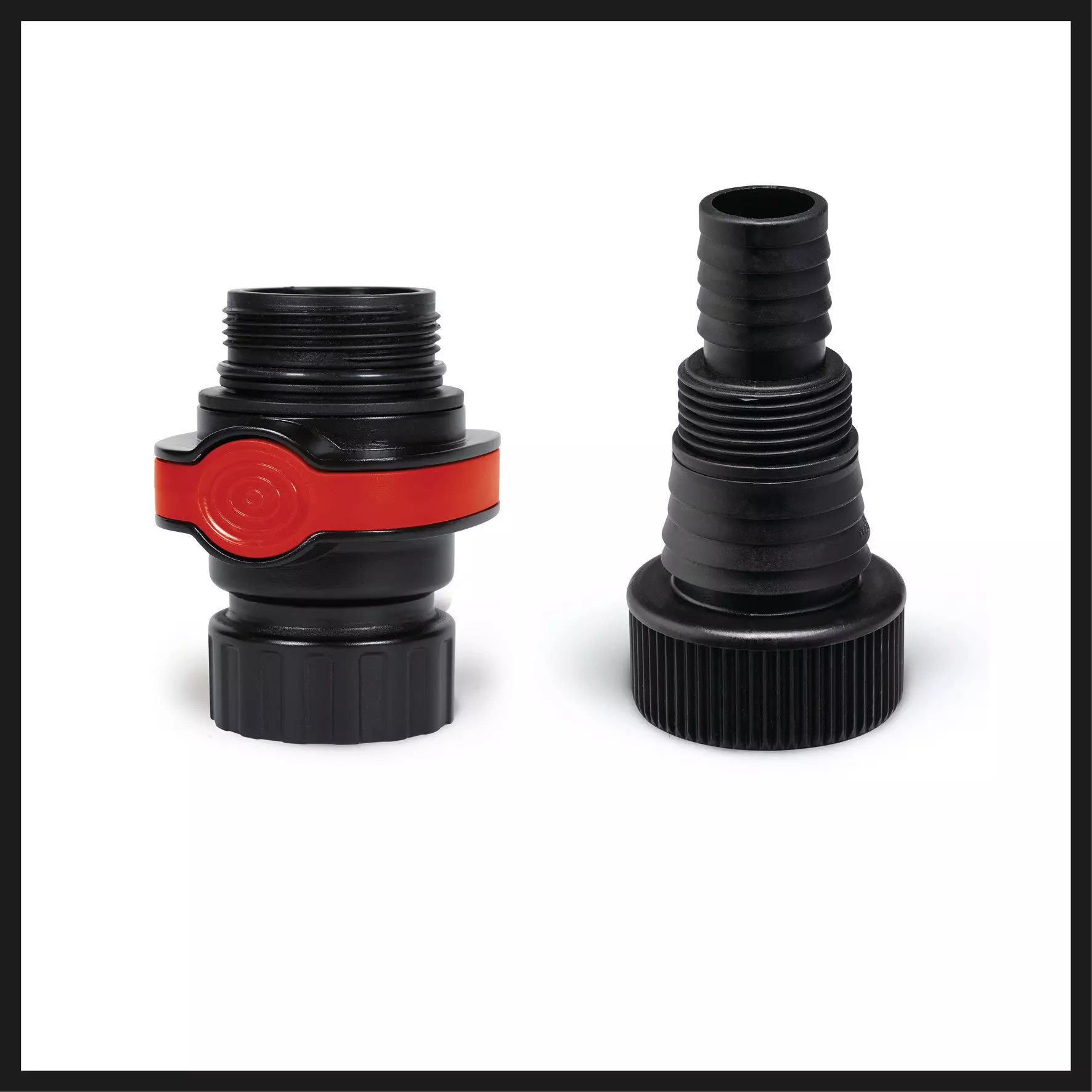

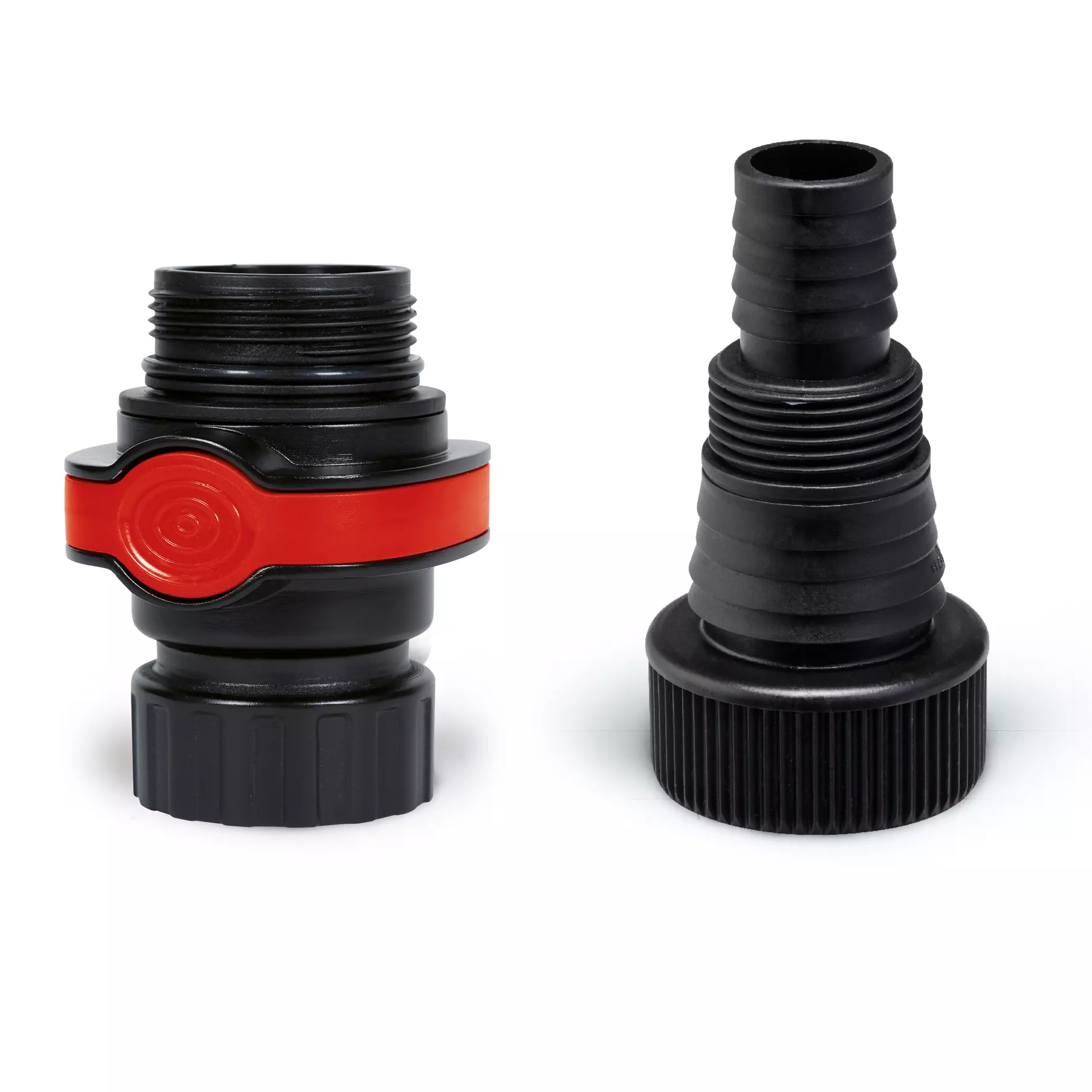

Two adapter parts for the Einhell dirty water pump GE-DP 8235 N-A LL with different threads.

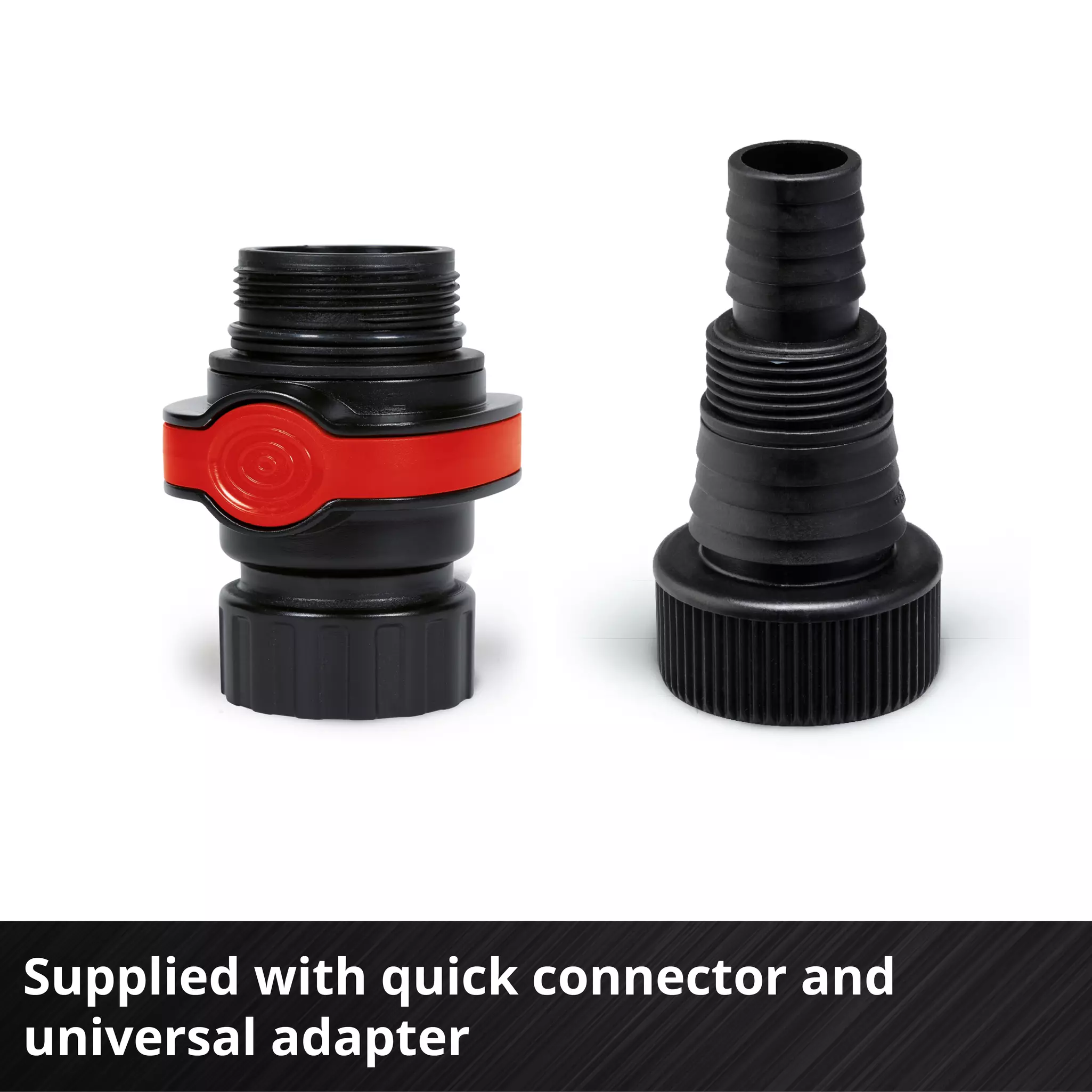

Quick Connector & Universal Adapter

The quick connector and universal adapter with a check valve enable fast, tool-free hose changes. The adapter’s 360° rotation prevents the pump from tipping when the hose is repositioned.

3-in-1 Combination PumpOptimally equipped for dirty and clear water

The Einhell dirty water pump GE-DP 8235 N-A LL is not only suitable for dirty water but also pumps clear water down to a residual level of 1 mm. The Aqua Sensor allows easy adjustment of the pump start.
