Cordless Garden Pump

AQUINNA 36/38 F LED

Item no: 4180410 EAN: 4006825668384
  • Member of the Power X-Change family, 2x 18 V battery required
  • TWIN-PACK technology: 2x 18 V Power X-Change batteries – more power
  • Suitable for all Power X-Change batteries
  • High pump performance combined with cordless freedom
  • LED battery charge indicator directly on the device
  • Power level switch: ECO and BOOST mode
  • Pre-filter for protection against impurities in the inducted water
  • Large water filling opening for easy commissioning
  • Frost protection thanks to easy emptying via water drainage screw
  • Overload protection to protect against overheating damage to the motor
  • Vent screw ensures efficient suction
  • Dirt indicator – quickly detect dirty filters
  • Water level indicator – Determine water level at a glance
  • Carrying handle for convenient transport
  • Pump base with bore for secure, permanent attachment
  • High-quality, durable metal suction and pressure connection
  • Non-return valve for preventing water backflow
  • Robust mechanical seal for long service life.
  • Delivery does not include a battery or charger (sold separately)
See more information
Total 169.95*
Configure your set
Accessories
Pump Accessory Item no: 4173763
RRP 59.950.00
Pump Accessory Item no: 4173640
RRP 59.950.00
Pump Accessory Item no: 4173645
RRP 35.950.00
Cordless Garden Pump
AQUINNA 36/38 F LED
Item no: 4180410 EAN: 4006825668384
  • Member of the Power X-Change family, 2x 18 V battery required
  • TWIN-PACK technology: 2x 18 V Power X-Change batteries – more power
  • Suitable for all Power X-Change batteries
  • High pump performance combined with cordless freedom
  • LED battery charge indicator directly on the device
  • Power level switch: ECO and BOOST mode
  • Pre-filter for protection against impurities in the inducted water
  • Large water filling opening for easy commissioning
  • Frost protection thanks to easy emptying via water drainage screw
  • Overload protection to protect against overheating damage to the motor
  • Vent screw ensures efficient suction
  • Dirt indicator – quickly detect dirty filters
  • Water level indicator – Determine water level at a glance
  • Carrying handle for convenient transport
  • Pump base with bore for secure, permanent attachment
  • High-quality, durable metal suction and pressure connection
  • Non-return valve for preventing water backflow
  • Robust mechanical seal for long service life.
  • Delivery does not include a battery or charger (sold separately)
See more information
einhell-expert-cordless-garden-pump-4180410-productimage-001
Article description

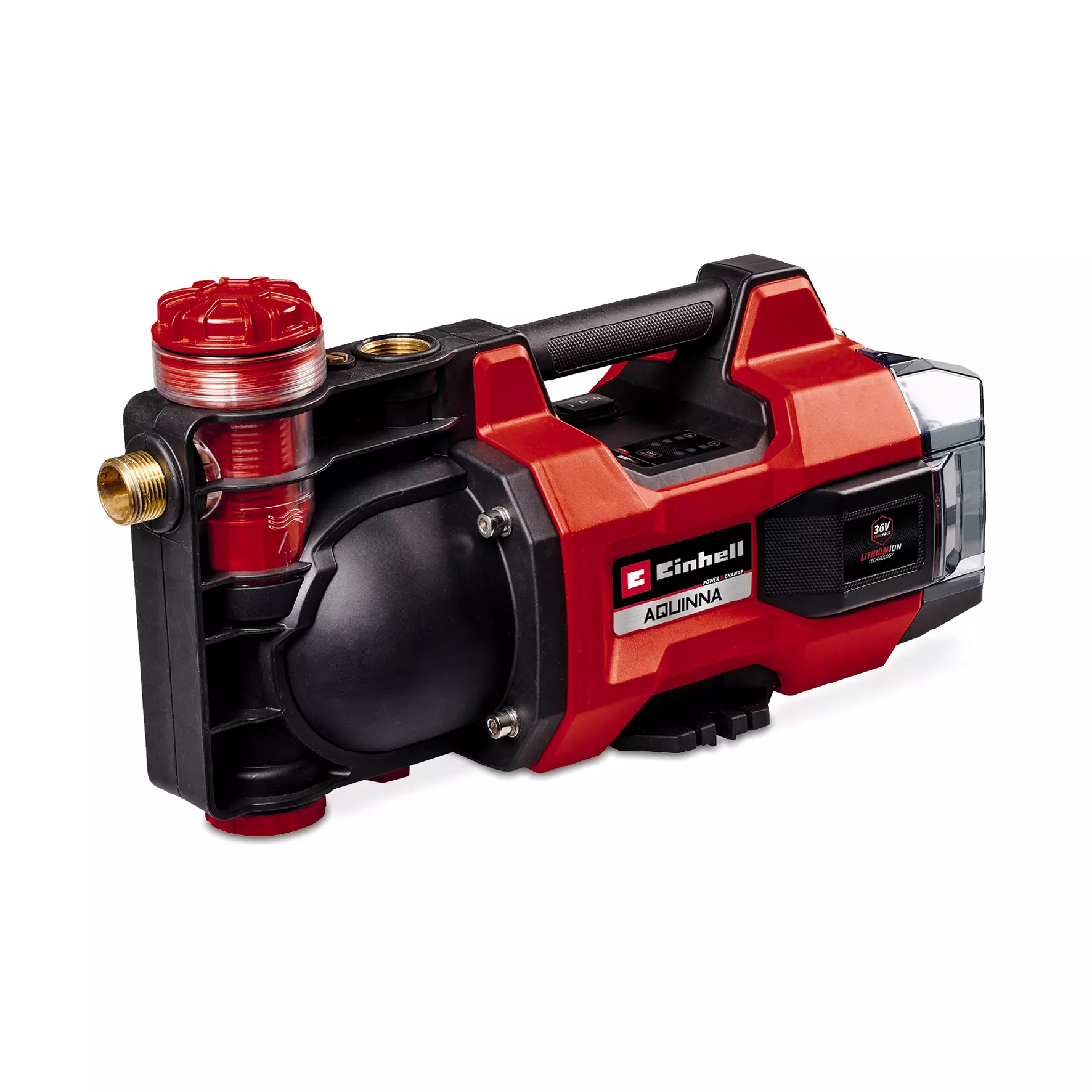

The Einhell cordless garden pump AQUINNA 36/38 F LED is a powerful pump that can be used everywhere around the home and garden when water needs to be pumped from A to B without a separate power connection. The AQUINNA 36/38 F LED is part of the flexible Power X-Change family, where all batteries, chargers and system devices for tools and gardens can be combined. The 36 V Twin-Pack technology, which combines the power of two 18 V batteries, ensures maximum power. The capacity of the two batteries can be seen on the LED charge level display at any time. The garden pump is equipped with two power modes: The BOOST mode for maximum flow rate and ECO mode for maximum battery life at lower delivery pressure. The battery water pump can pump up to 3,800 litres of water per hour. It can reach a maximum delivery height of 37 metres, which corresponds to a maximum delivery pressure of 3.7 bar. Water can be sucked in from a depth of up to 6 metres. For simple filling, e.g. during the first suction process, the pump has a large water filler screw. The pump is easily emptied, especially for frost protection in winter, with the help of the water drainage screw on the underside. To protect against contamination, the garden pump is equipped with a pre-filter. This is surrounded by a transparent housing, which makes it possible to detect at any time whether the pump has been sufficiently filled with water and whether the filter is dirty and should be cleaned. A non-return valve also prevents the water from dropping. In the event of overheating, the device is automatically switched off by the overload protection to prevent damage. The cordless garden pump is equipped with a central carrying handle for easy transport and fixing holes for fixing in a permanent place of use. The cordless garden pump is equipped with two robust metal threaded connections. Delivery does not include a battery or charger. These are available separately as a starter kit

Technical details

Max. delivery height37 m
Max. delivery pressure3.7 bar
Max. delivery rate3800 l/h
Max. suction height6 m
Max. water temperature35 °C
Motor typeBrush motor
Motor voltage36 V
Number of batteries included in delivery0 pcs
Number of chargers included in delivery0 pcs
Pressure connection type33,3 mm (G1 IG)
Product weight4.25 Kg
Suction connection type33,3 mm (R1 AG)
full_width_image

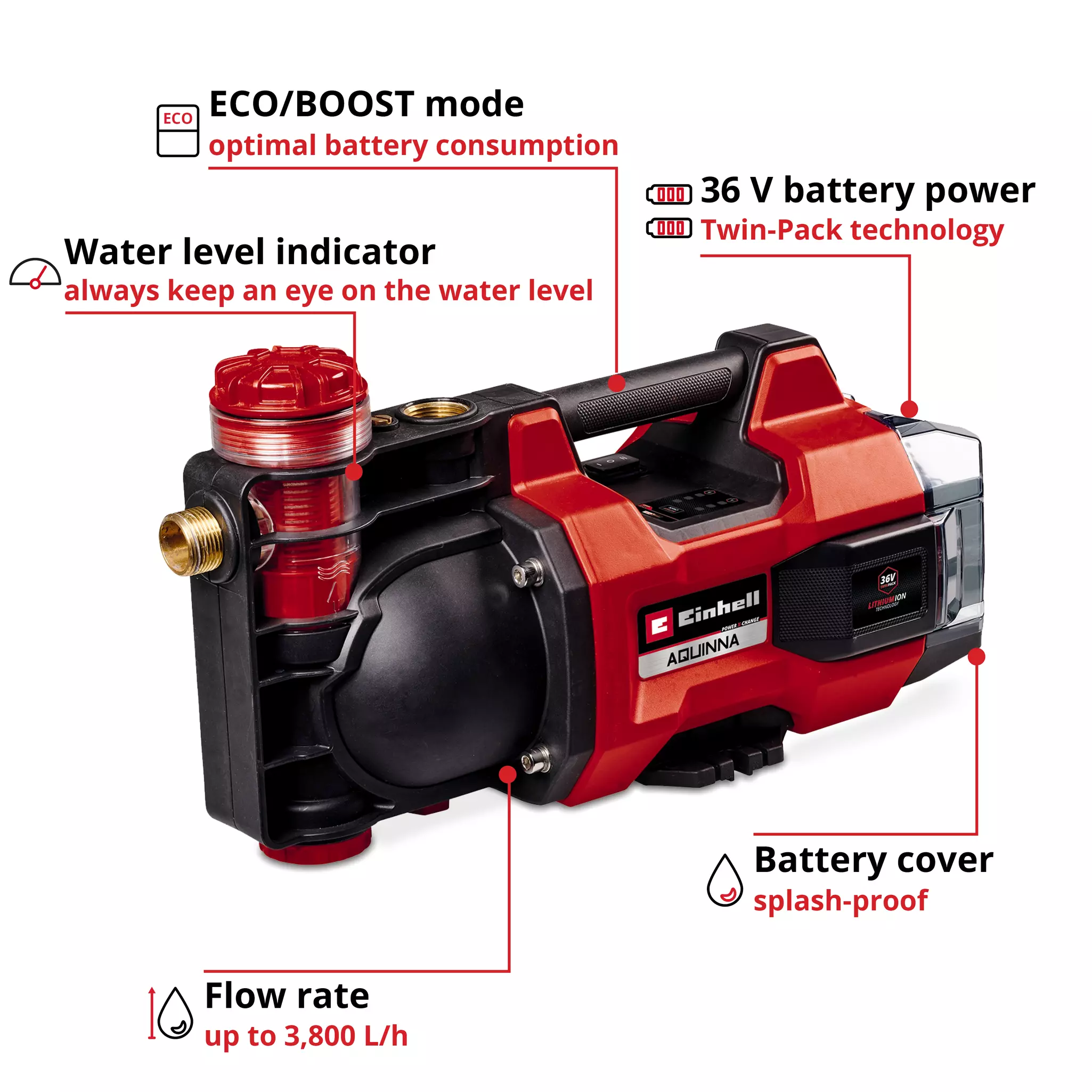

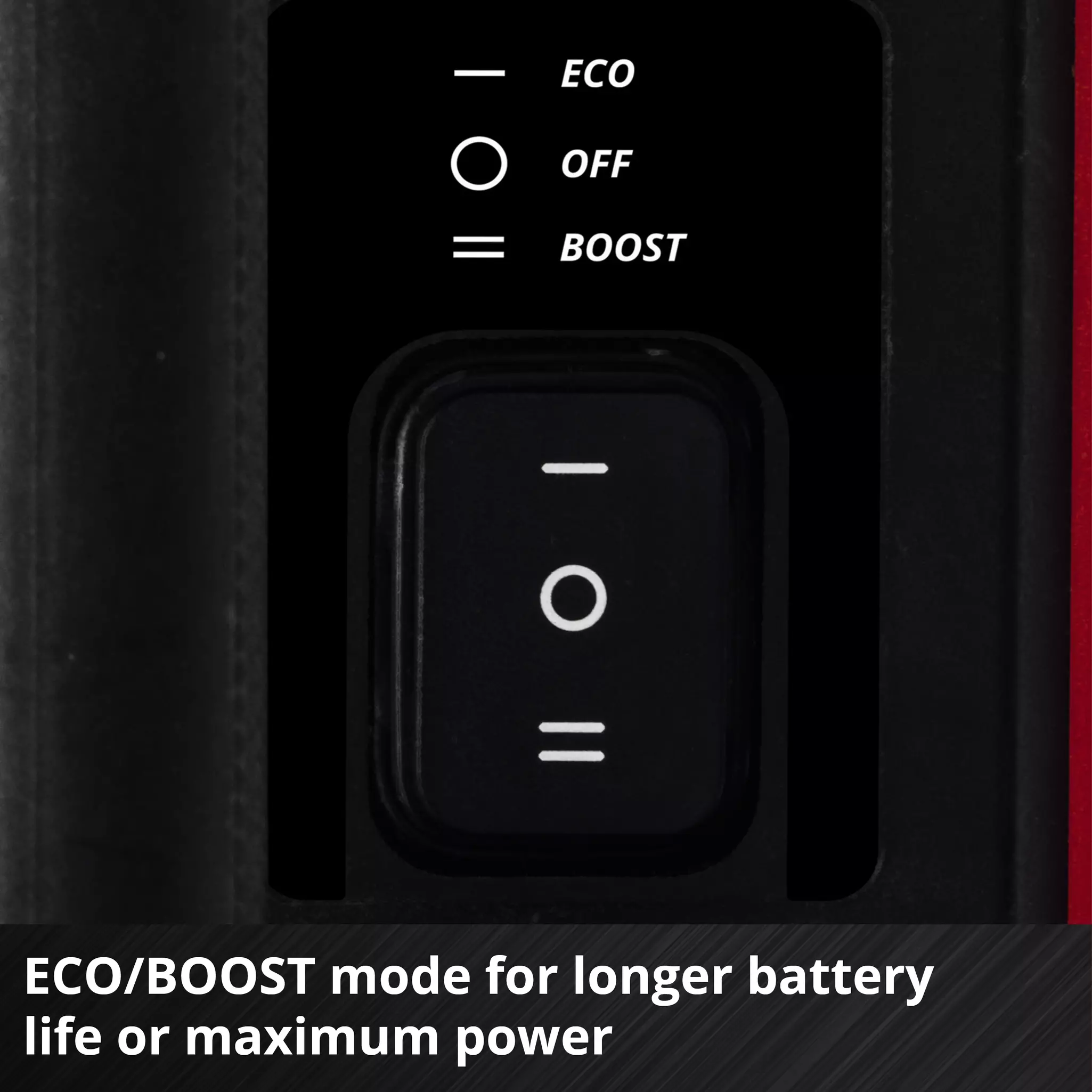

Performance levels

Simply select between: ECO and BOOST mode

On the cordless garden pump AQUINNA 36/38 F LED, you can easily choose between two power levels at the touch of a button. BOOST mode provides full power with maximum delivery pressure. In ECO mode, on the other hand, pumping takes place with less pressure for maximum battery life. In this way, the appropriate mode can be selected for every task.

Performance-levels
Simple-transport

Simple transport

With the help of the central carrying handle, the cordless garden pump can be used flexibly and carried from A to B.

Protected-batteries

Protected batteries

The batteries inserted in the pump are protected from splashing water and dust by the battery cover.

Twin-Pack-technology

Twin-Pack technology

The 36 V Twin-Pack technology combines the power of two 18 V Power X-Change batteries for maximum performance.

Secure-mounting

Secure mounting

The garden pump is equipped with fixing holes for permanent fixation at a specific place of use.

LED-charge-level-indicator

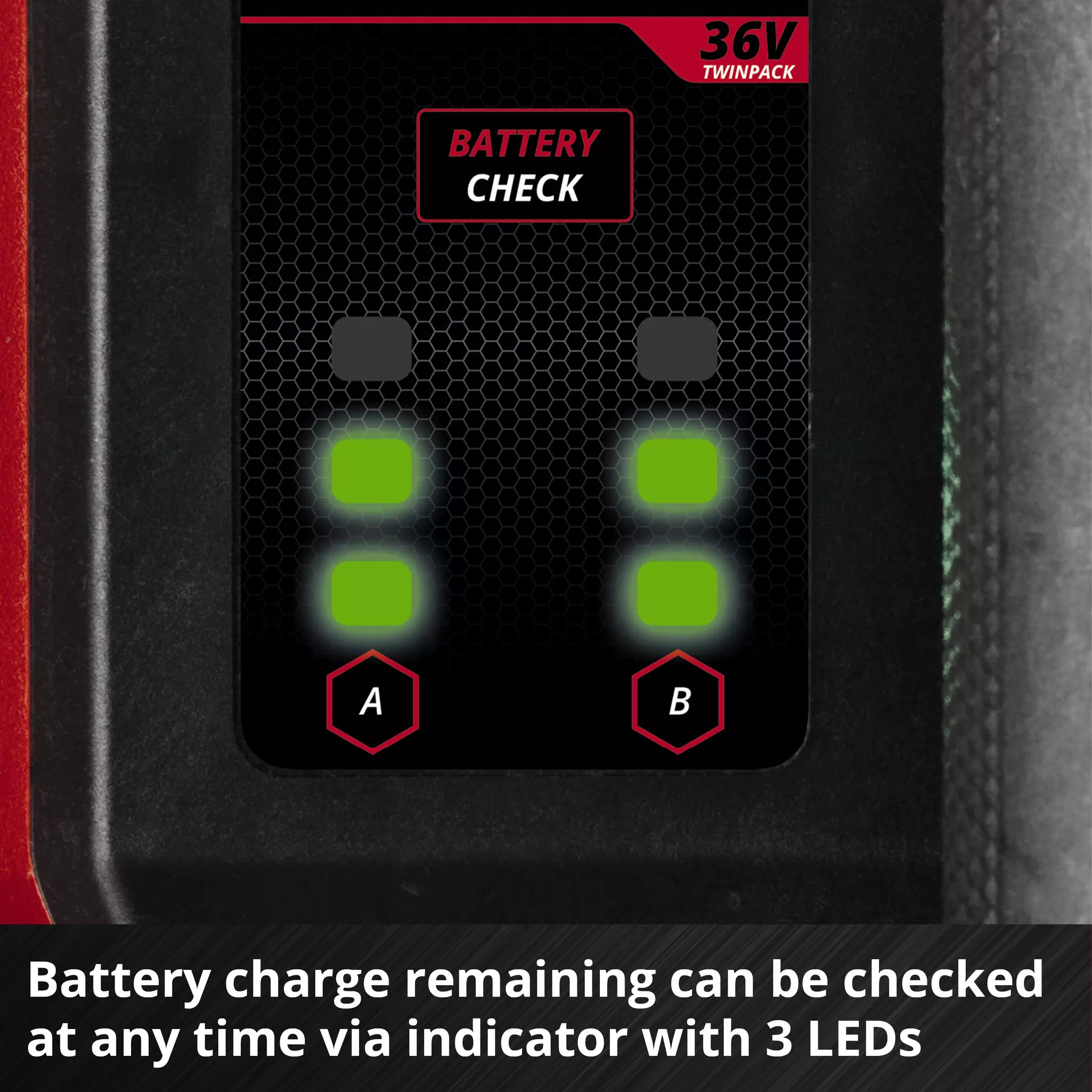

LED charge level indicator

The remaining battery capacity can be seen using the charge level display directly on the pump without removing the batteries. The display for both batteries is integrated in the form of LEDs on the top of the pump housing.

Water-level-and-dirt-indicator

Water level and dirt indicator

The transparent housing around the pre-filter fulfills two functions: It serves as a water level indicator and as a dirt indicator. This means you can see whether the pump has been filled with water and whether the filter is dirty and needs to be cleaned.

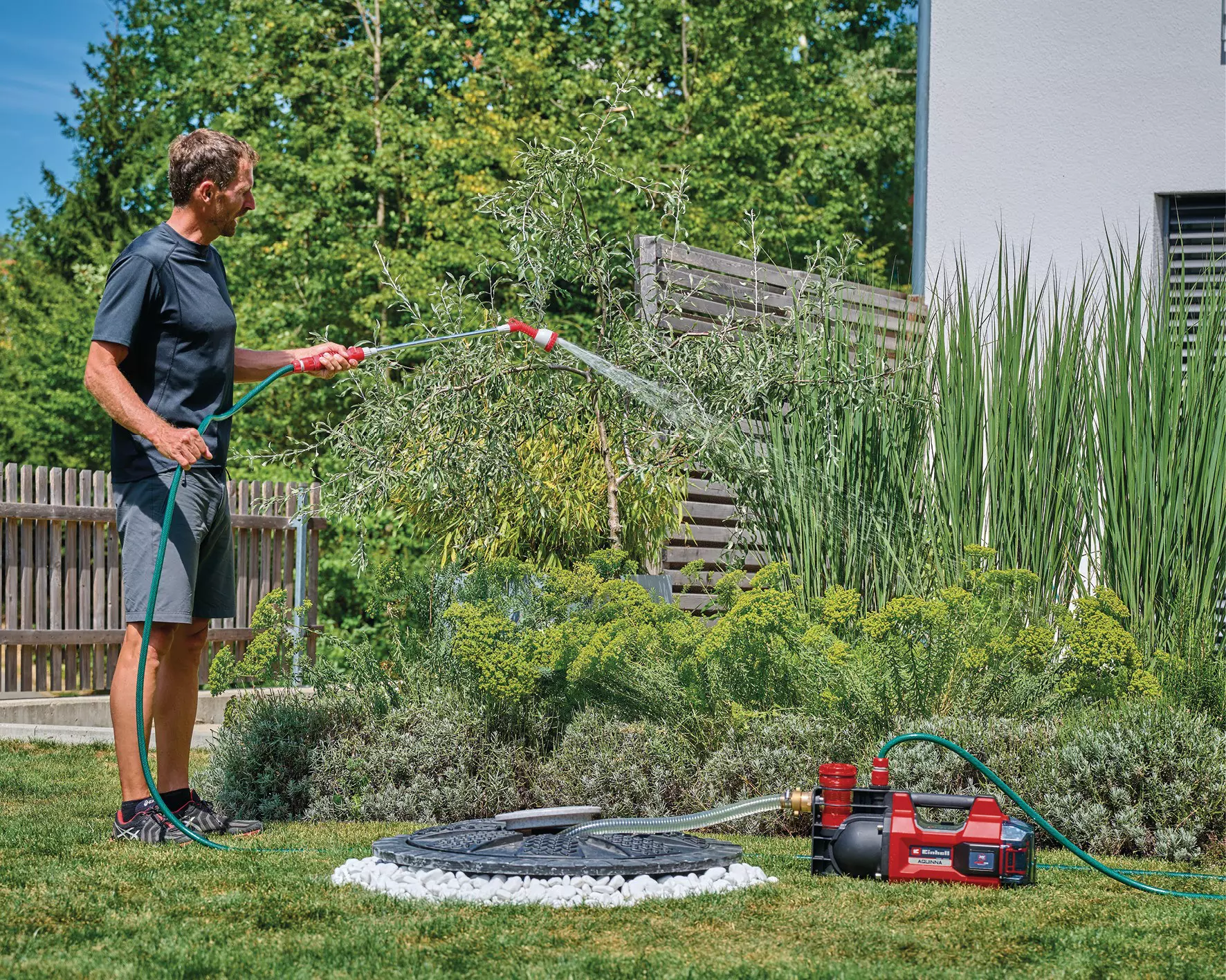

Highest pumping capacityCordless garden pump for cordless garden watering

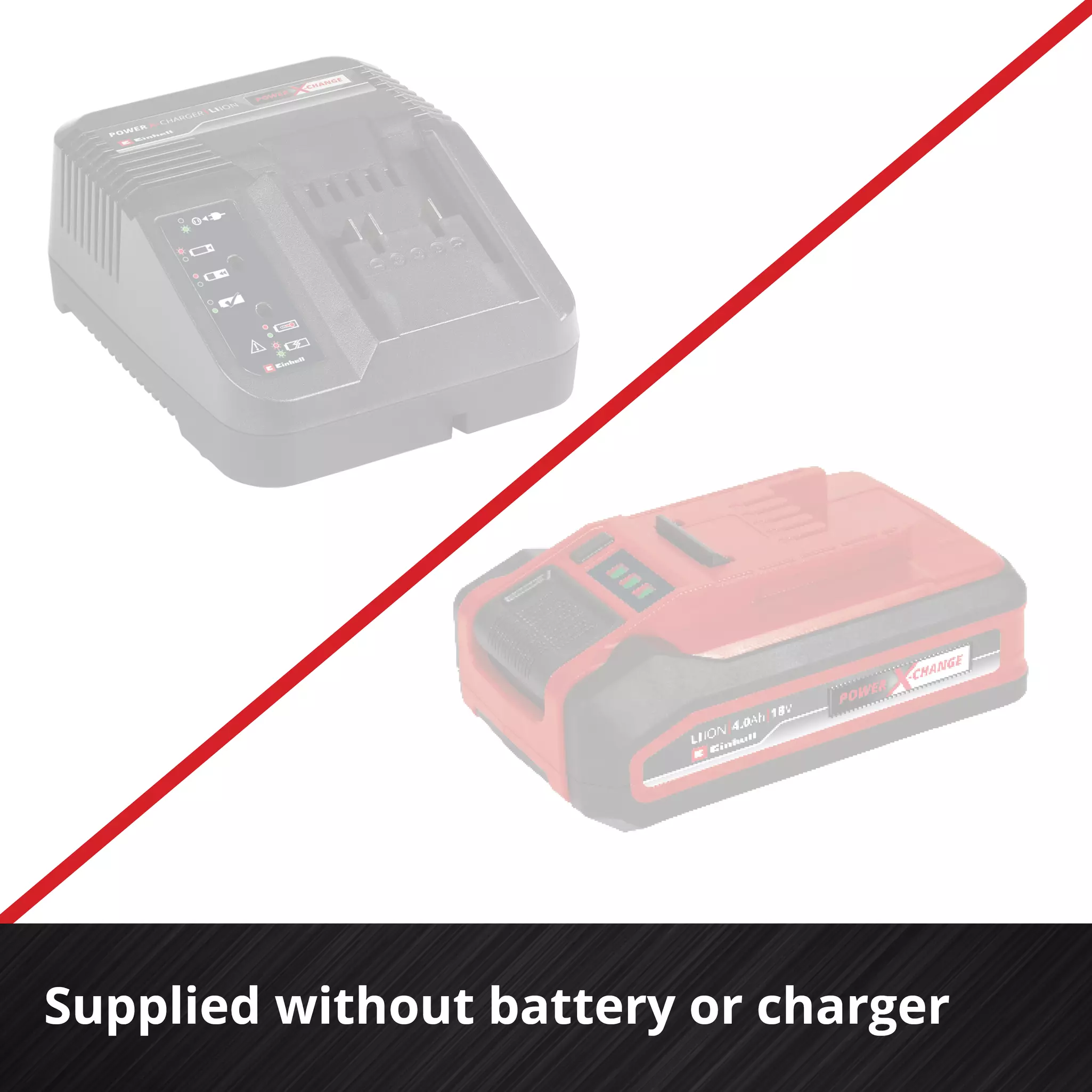

Need to pump water without a power supply? No problem for the cordless garden pump AQUINNA 36/38 F LED. As part of the Power X-Change family, it can be combined with all PXC batteries and chargers. Delivery does not include battery or charger. These are available separately.

Frost-protection-thanks-to-water-drainage-screw

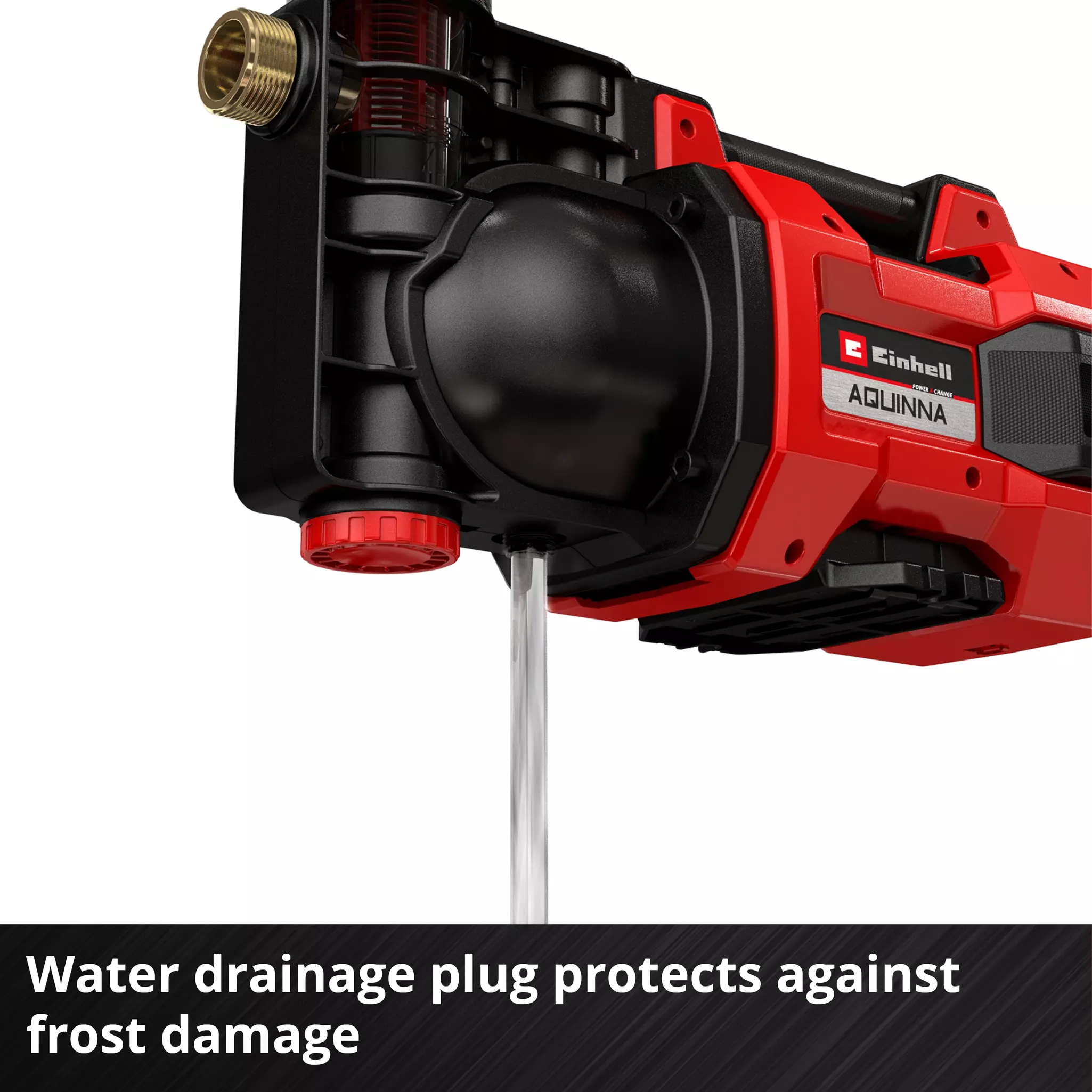

Frost protection thanks to water drainage screw

The cordless garden pump should be stored away from frost in preparation for winter. So that no damage is caused by the freezing and expanding water in the interior of the pump, the water can be emptied quite simply via the water drainage screw.

Pre-filter-and-non-return-valve

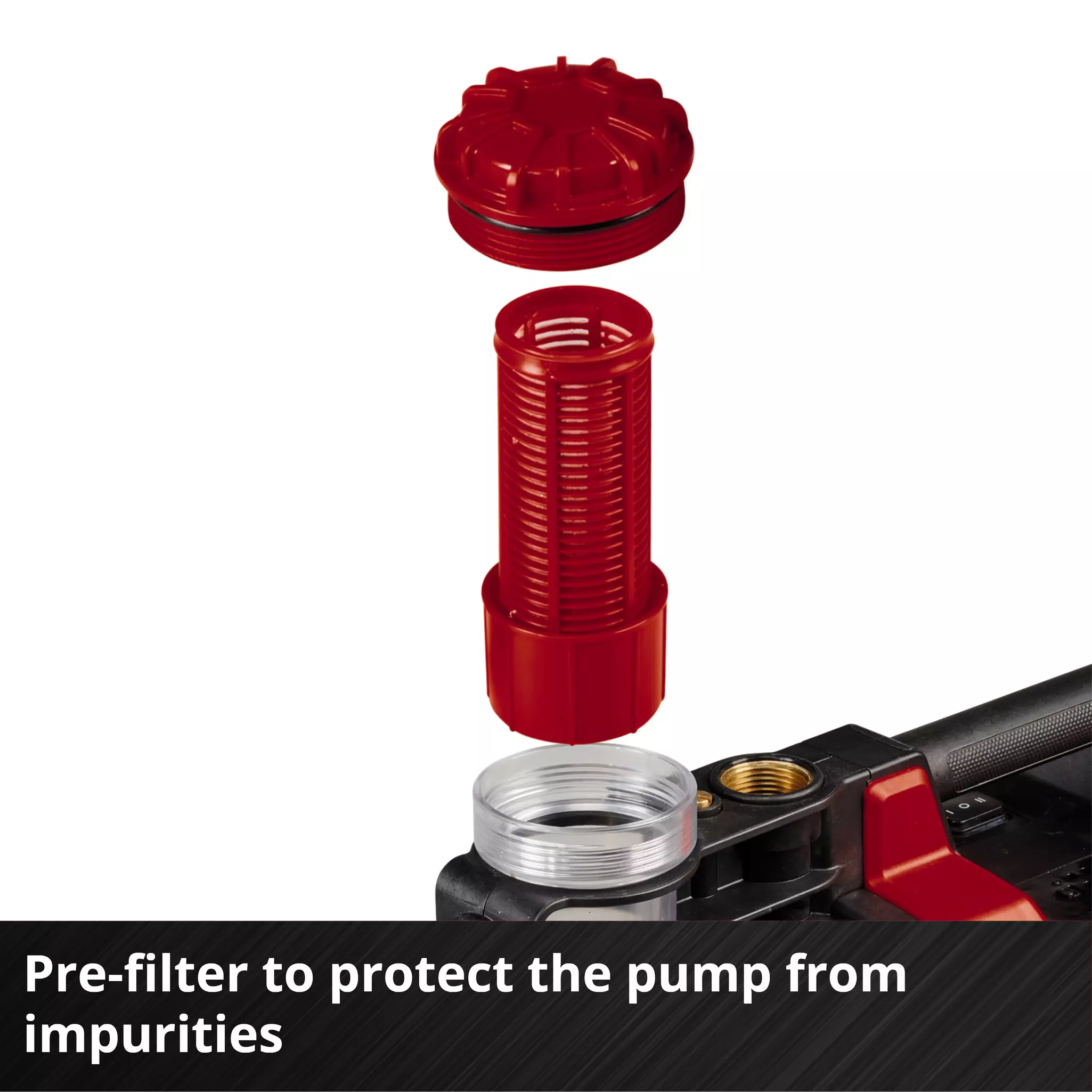

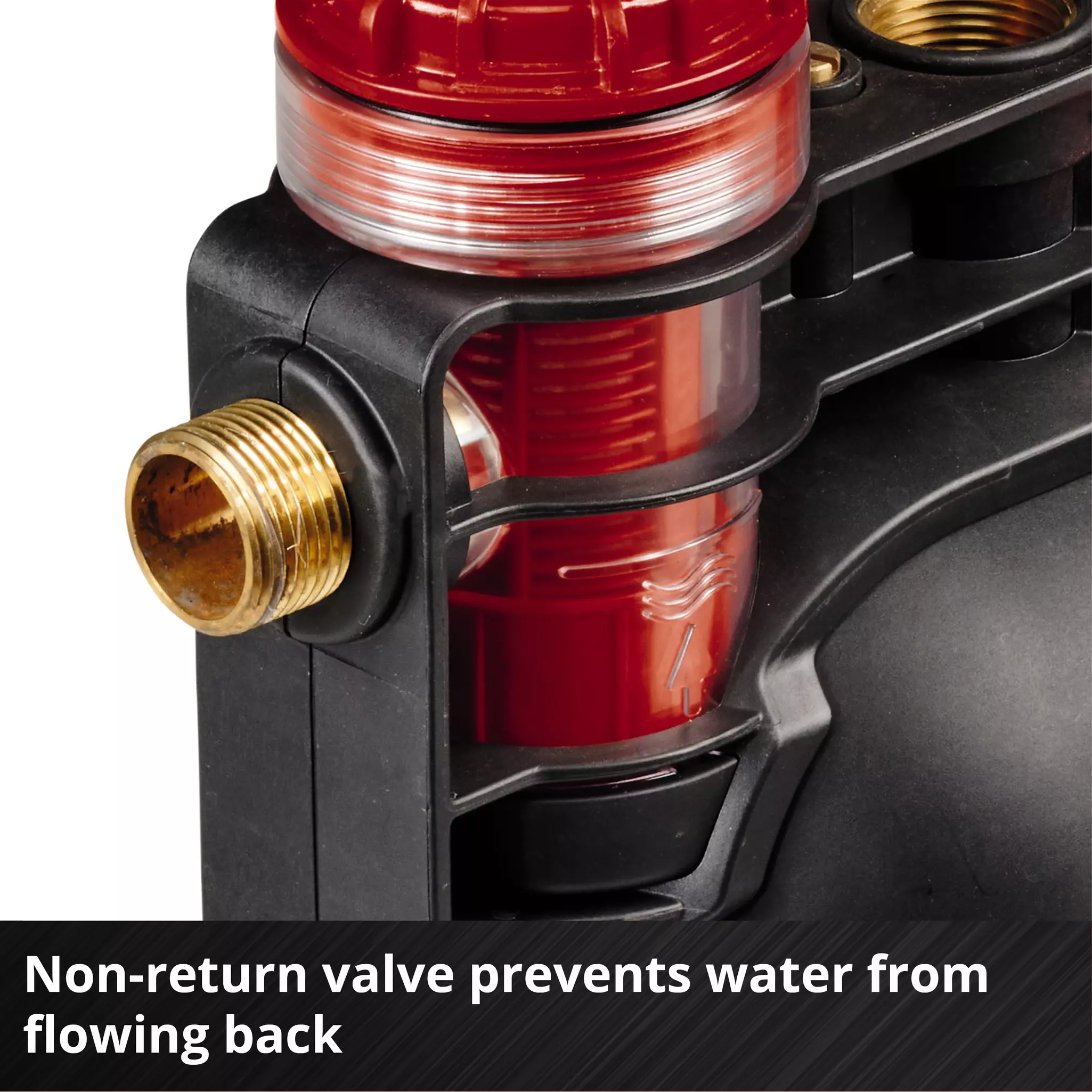

Pre-filter and non-return valve

The integrated pre-filter protects the battery pump from dirt and contamination in the water to be pumped. The pump is also equipped with a non-return valve, which prevents the water from dripping out and allows immediate suction.
