PROFESSIONAL Cordless Rotary Hammer

TP-HD 18/28 Li BL+4 (1x3,0Ah+)

Item no: 4514274 EAN: 4006825682045
  • Member of the Power X-Change family, 1 x 18 V battery required
  • Brushless motor – more power and longer run time
  • Brushless – 10-year motor guarantee after registration

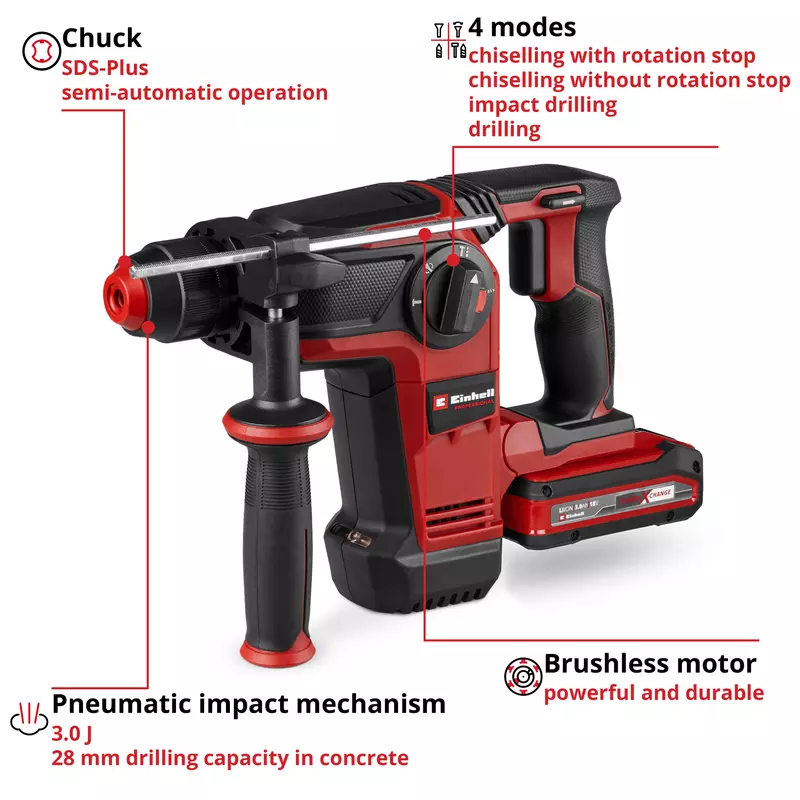

  • 4 functions: Drilling/hammer drilling/chiselling with & without rotation stop
  • Easy to use: 1 position switch for 4 functions
  • Fine-tunable speed control for precise and delicate tasks
  • Pneumatic impact mechanism for easy drilling into concrete
  • Clockwise and anticlockwise rotation for tightening and loosening screws
  • SDS-Plus tool holder with semi-automatic operation
  • Vibration-damped handle for low-vibration operation
  • Ergonomic handle and auxiliary handle with Softgrip
  • Solid-metal drilling depth stop with stepless adjustment
  • LED light to illuminate the working area
  • Incl. 3x drill bits for concrete (Ø 8, 10, 12 mm)
  • Incl. 1x flat chisel
  • Comes in an E-Case S transport and storage case
  • Recommendation for optimal results: 3.0 Ah battery and above
  • Includes 3.0 Ah Power X-Change Plus battery and charger
See more information
Show less information
Total 269.95269.95 EUR*
PROFESSIONAL Cordless Rotary Hammer
TP-HD 18/28 Li BL+4 (1x3,0Ah+)
Item no: 4514274 EAN: 4006825682045
  • Member of the Power X-Change family, 1 x 18 V battery required
  • Brushless motor – more power and longer run time
  • Brushless – 10-year motor guarantee after registration
  • 4 functions: Drilling/hammer drilling/chiselling with & without rotation stop
  • Easy to use: 1 position switch for 4 functions
  • Fine-tunable speed control for precise and delicate tasks
  • Pneumatic impact mechanism for easy drilling into concrete
  • Clockwise and anticlockwise rotation for tightening and loosening screws
  • SDS-Plus tool holder with semi-automatic operation
  • Vibration-damped handle for low-vibration operation
  • Ergonomic handle and auxiliary handle with Softgrip
  • Solid-metal drilling depth stop with stepless adjustment
  • LED light to illuminate the working area
  • Incl. 3x drill bits for concrete (Ø 8, 10, 12 mm)
  • Incl. 1x flat chisel
  • Comes in an E-Case S transport and storage case
  • Recommendation for optimal results: 3.0 Ah battery and above
  • Includes 3.0 Ah Power X-Change Plus battery and charger
See more information
Show less information
einhell-professional-cordless-rotary-hammer-4514274-productimage-001
Article description

The Einhell Professional cordless rotary hammer TP-HD 18/28 Li BL +4 (1x3.0 Ah+) is a true all-rounder. It combines four functions in a single tool: Drilling, hammer drilling and chiselling with/without rotation stop. These modes can be set by means of a central position switch. The device is driven by a mighty Einhell brushless motor. This brushless motor offers more power and a longer running time than conventional carbon brush motors. Once you register online, the brushless motor has a 10-year guarantee. The cordless rotary hammer is part of the Power X-Change family, where batteries, tools and chargers can all be combined flexibly. The pneumatic impact mechanism delivers up to 3 joules of percussive power. Thanks to its high drilling capacity, the rotary hammer can produce holes with diameters of up to 28 mm in concrete. The universal semi-automatic SDS-Plus chuck makes tool changes straightforward and quick. The speed can be finely adjusted according to the material and task. Designed for comfortable operation, the ergonomic handle with Softgrip reduces fatigue during use. The anti-vibration handle ensures low vibration, enabling more accurate work. The robust drill depth stop for precision drilling is continuously adjustable. The cordless rotary hammer TP-HD 18/28 Li BL +4 is equipped with an LED light for optimal illumination of your work area. The set comes in a practical E-Case S transport and storage case, along with three drill bits for concrete (Ø 8, 10, 12 mm) and a flat chisel. It also comes with a 3.0 Ah Power X-Change Plus battery and a charger.

See more information
Show less information

Technical details

Impact strength3 J
Max. drilling power concrete28 mm
Max. drilling power metal13 mm
Max. drilling power wood40 mm
Motor typeBrushless motor
Motor voltage18 V
Number of batteries included in delivery1 pcs
Number of chargers included in delivery1 pcs
Number of transmission gears1
Product weight3.67 Kg
Transmission materialStainless steel

Powerful and durable

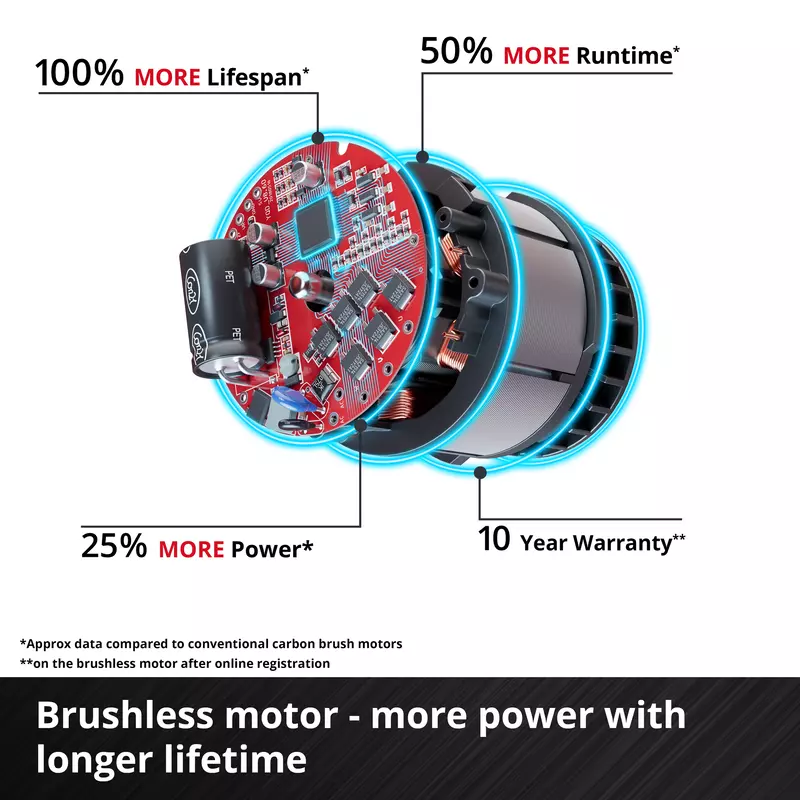

Einhell Brushless motor

The Brushless motor delivers more power, extended run time and maximum service life. Unlike carbon brush motors, the brushless motor does not suffer wear and is therefore maintenance-free. Once you register online, we offer a 10-year service promise on the Brushless motor.

Powerful-and-durable
Perfect-visibility

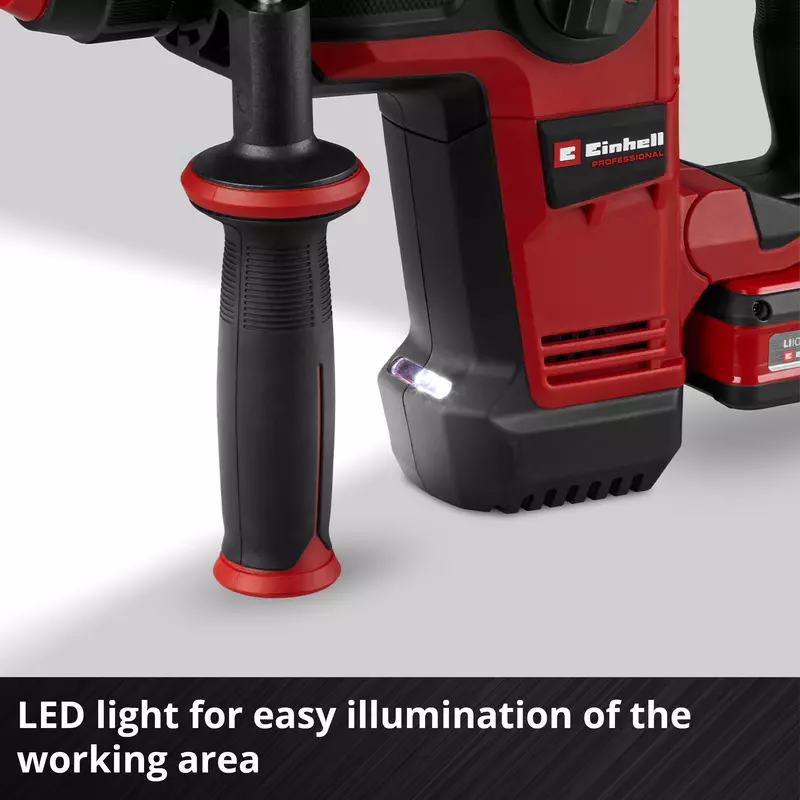

Perfect visibility

The LED light integrated into the cordless rotary hammer ensures optimal illumination even in dark work areas.

Four-modes

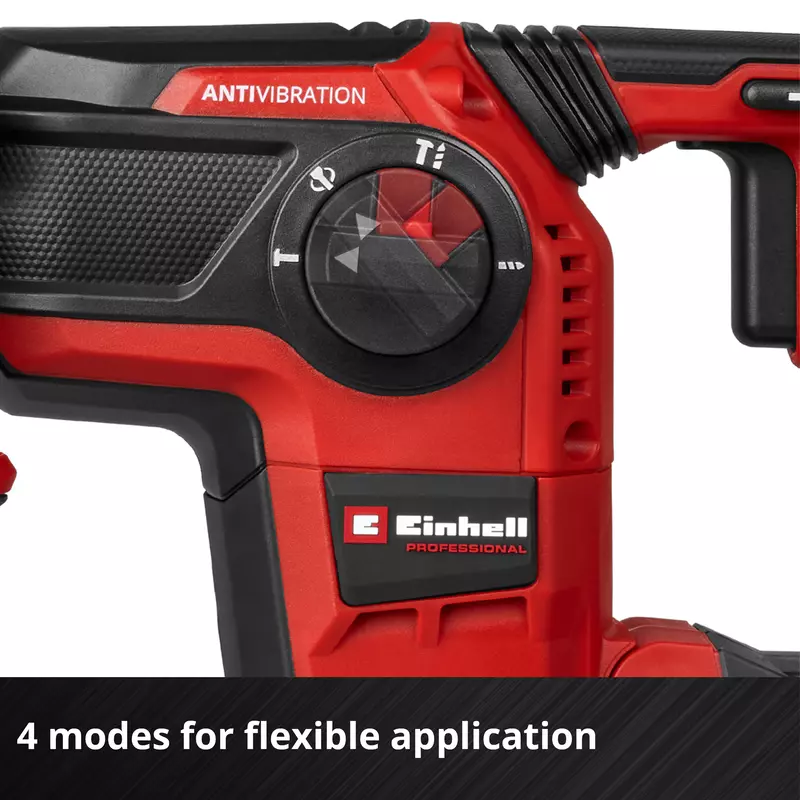

Four modes

The four functions can be selected by means of a rotary switch: Drilling, hammer drilling, chiselling with & without rotation stop.

SDS-Plus-chuck

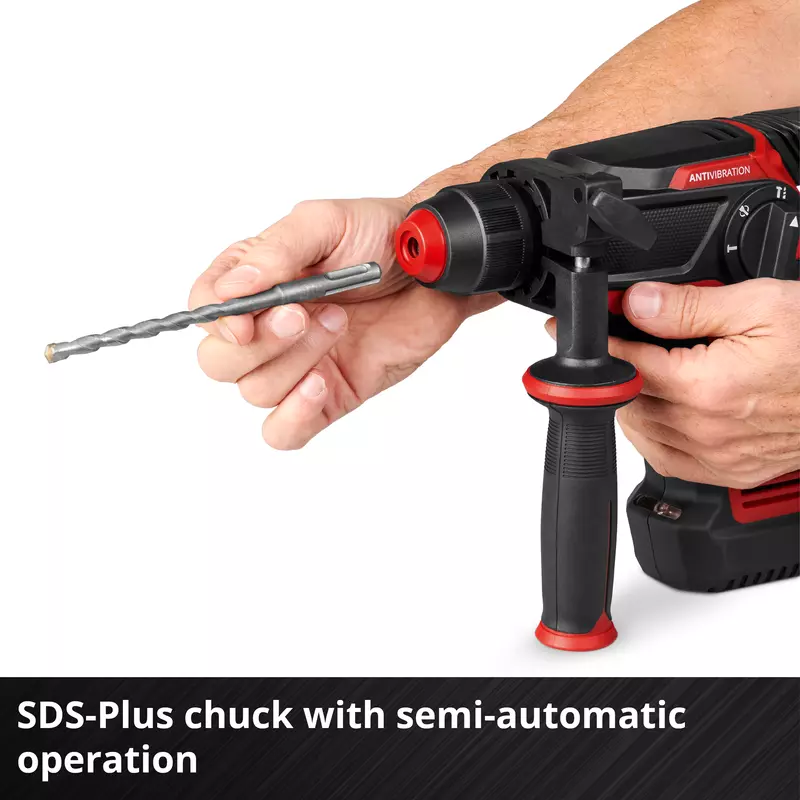

SDS Plus chuck

Drill bits and chisels can be exchanged quickly and attached securely thanks to the semi-automatic universal SDS Plus chuck.

Precisely-drilled-holes

Precisely drilled holes

Worried about drilling too deep? The robust, individually adjustable depth stop eliminates any concerns about depth control.

Includes-accessories-and-suitcases

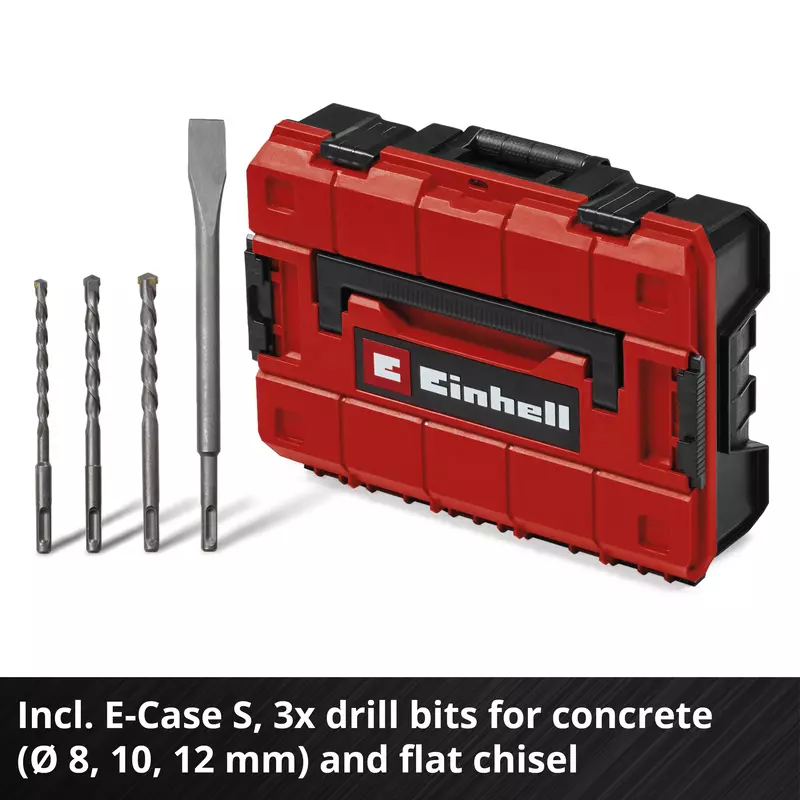

Includes accessories and suitcases

The Einhell Professional cordless rotary hammer TP-HD 18/28 Li BL+4 comes in a practical E-case S transport and storage case. Three drill bits for concrete (Ø 8, 10, 12 mm) and a flat chisel are also included.

Includes-battery-and-charger

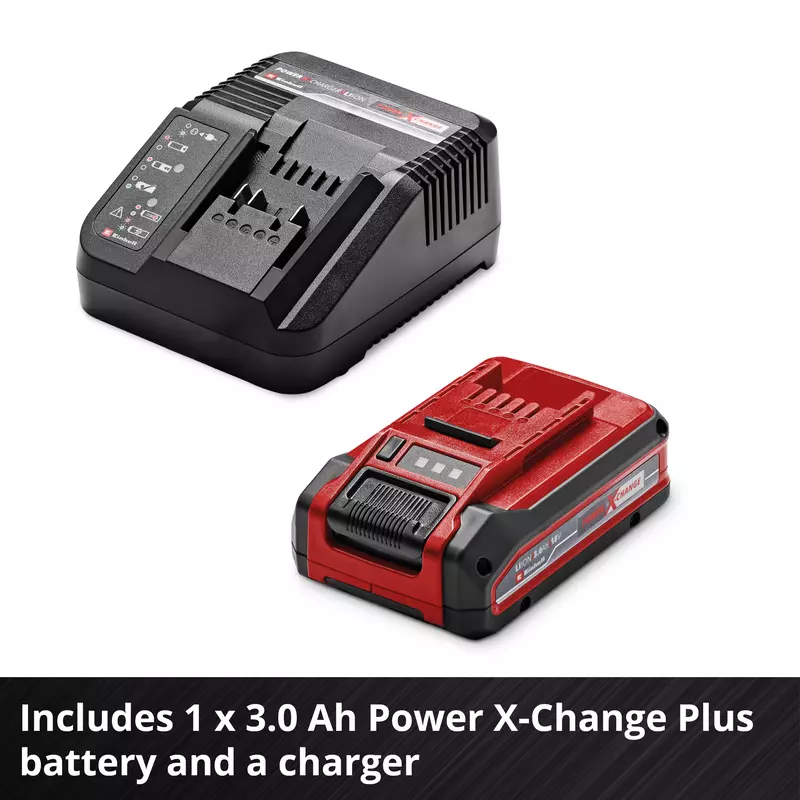

Includes battery and charger

The cordless rotary hammer set also includes a 3.0 Ah Power X-Change Plus battery and a charger. So, you can start working right away.

Cordless rotary hammer

High-impact workhorse for demanding jobs

With its high power, the Einhell Professional cordless rotary hammer TP-HD 18/28 Li-BL +4 is a popular all-rounder around the house and in the workshop. With its pneumatic impact mechanism providing 3 joules of impact energy, the powerful rotary hammer can work its way into any wall, no matter how hard, and drills holes with diameters of up to 40 mm in wood, 28 mm in concrete and 13 mm in metal.

Cordless-rotary-hammer
