Circular saw blades
TC Sawbl 136x20 24T, Cordless
Item no:49583602EAN: 4009315836027

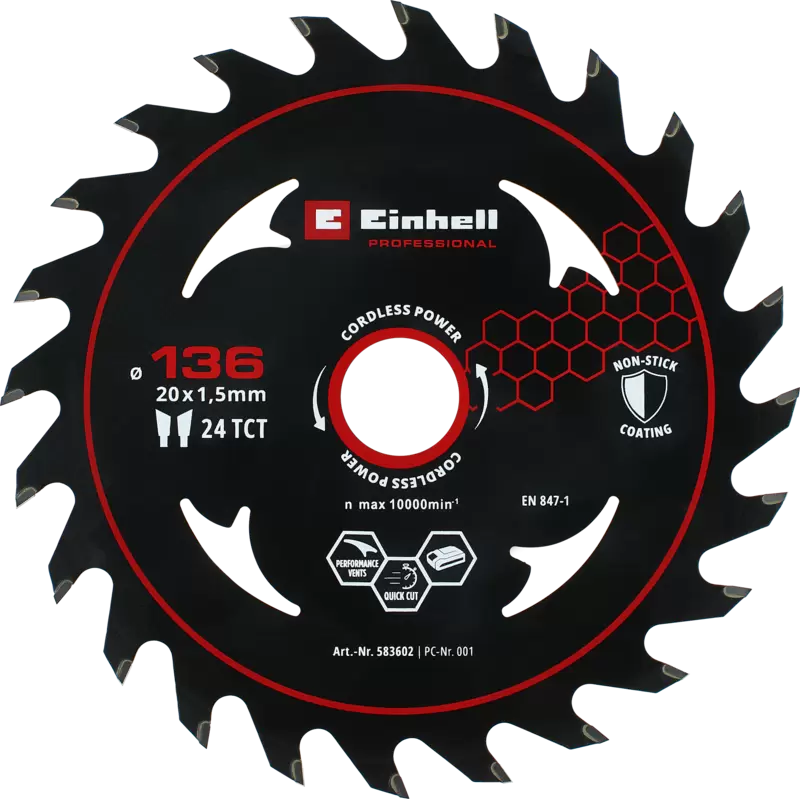

einhell-accessory-kwb-circular-saw-blades-49583602-productimage-101
einhell-accessory-kwb-circular-saw-blades-49583602-productimage-101
Circular saw blades

TC Sawbl 136x20 24T, Cordless

Item no: 49583602 EAN: 4009315836027
  • 136 mm diameter and 20 mm bore
  • 24 teeth for smooth cut edges and fast work progress
  • 20° tooth angle ensures particularly aggressive cutting behaviour
  • 1.5 mm cutting width for fine cut quality and an accurate cutting line
  • ATB teeth for clean cross and rip cuts in wood
  • Optimised for cordless handheld circular saws for more cuts per battery charge
  • 1 mm blade thickness reduces effort and increases cutting speed
  • Performance vents reduce heat and improve chip ejection
  • PTFE coating protects against corrosion and reduces friction
  • Expansion slots ensure dimensional stability under heat exposure
  • Reducing rings (2x 20/16 mm) included
  • Knurled reducing rings for an optimum fit
  • Suitable for corded and cordless handheld circular saws
See more information
Show less information
Attention!

Currently, no orders can be placed in the online shop.

Please try again later or check your firewall/ad-blocker settings.

Circular saw blades
TC Sawbl 136x20 24T, Cordless
Item no: 49583602 EAN: 4009315836027
  • 136 mm diameter and 20 mm bore
  • 24 teeth for smooth cut edges and fast work progress
  • 20° tooth angle ensures particularly aggressive cutting behaviour
  • 1.5 mm cutting width for fine cut quality and an accurate cutting line
  • ATB teeth for clean cross and rip cuts in wood
  • Optimised for cordless handheld circular saws for more cuts per battery charge
  • 1 mm blade thickness reduces effort and increases cutting speed
  • Performance vents reduce heat and improve chip ejection
  • PTFE coating protects against corrosion and reduces friction
  • Expansion slots ensure dimensional stability under heat exposure
  • Reducing rings (2x 20/16 mm) included
  • Knurled reducing rings for an optimum fit
  • Suitable for corded and cordless handheld circular saws
See more information
Show less information

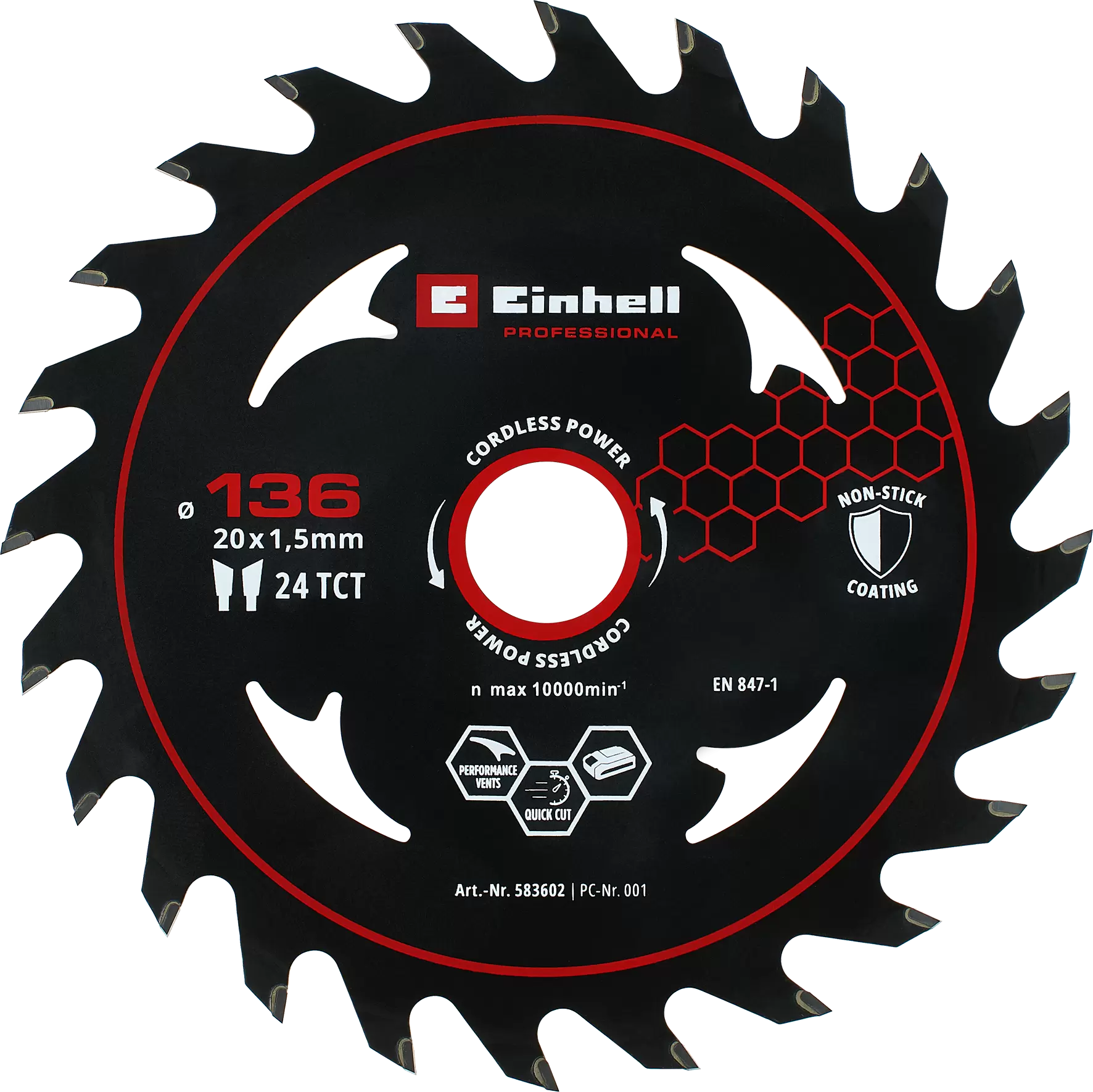

einhell-accessory-kwb-circular-saw-blades-49583602-productimage-101
Article description

The Einhell circular saw blade for handheld circular saws from the Cordless Power series, with a diameter of 136 mm and a bore of 20 mm, offers fine cut quality with its 24 teeth while ensuring fast feed. The cutting width is 1.5 mm and the blade thickness is 1 mm. This slim design reduces the effort required during sawing and promotes an accurate cutting line. The positive tooth angle of 20 degrees enables particularly grippy cutting guidance, allowing the saw blade to actively engage with the workpiece and support feed performance. The ATB tooth geometry features alternately bevelled tooth backs, enabling a clean cut for rip cuts and cross cuts in wood. The hardened teeth cut the material precisely and ensure smooth cut edges. As part of the Cordless Power series, the blade is optimised for battery-powered machines: the combination of thin cutting width and low blade thickness allows fast, low-effort feed and maximises battery runtime. Compared with standard circular saw blades, more cuts can therefore be made per battery charge. The performance vents support effective heat dissipation even at high speeds, prevent the disc from overheating and help maintain a consistently high cutting speed. At the same time, they ensure improved chip ejection, keeping the spaces between the teeth clear and maintaining cut quality. Thermal slots reduce the risk of material stress caused by heat build-up, increasing cutting accuracy and stability. An optional PTFE coating protects the blade against corrosion, minimises friction during sawing and supports fatigue-free working. Two included reducing rings to 16 mm extend the application options, also allowing use on machines with a smaller bore. The saw blade is compatible with both cordless handheld circular saws and all standard corded handheld circular saws.

See more information
Show less information
